Frac Tank Spill Containment Berms

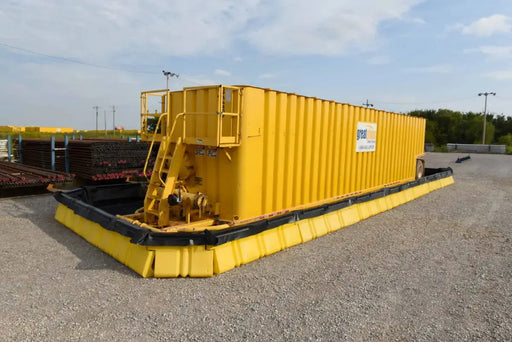

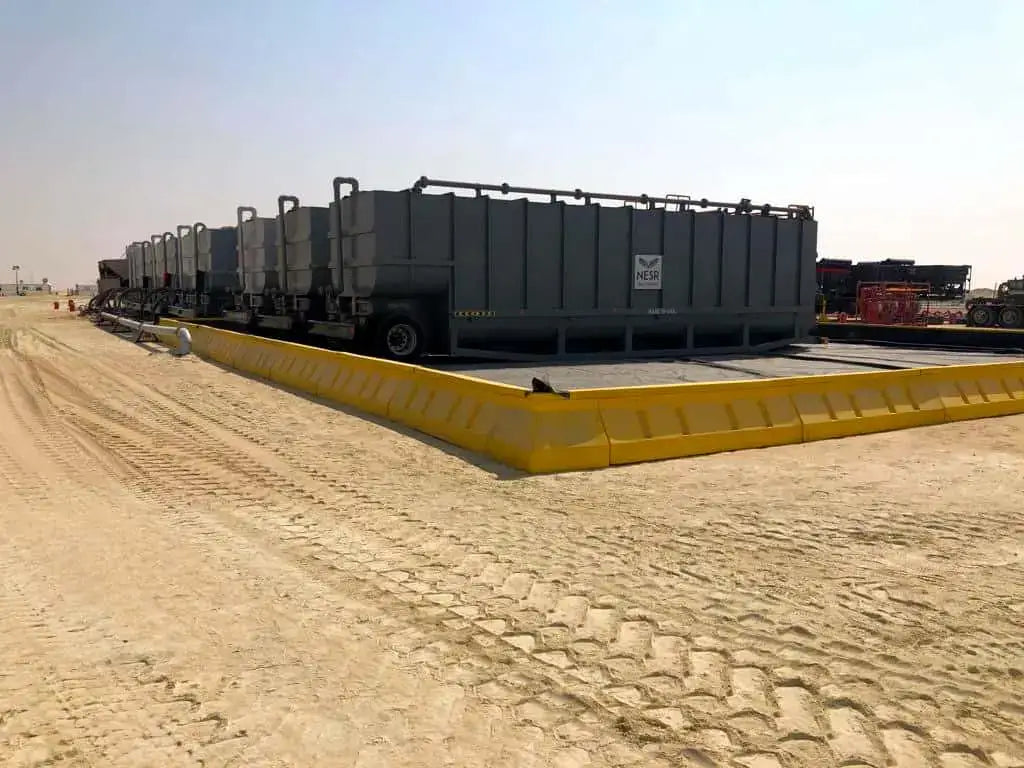

Frac Tank Secondary Containment System

If you need a high capacity containment solution for frac tanks, we recommend the Ultra Containment wall system.

The modular containment wall system is available is available with 12 inch, 24 inch or 36 inch wall heights.

The modular walls are available as corner or straight walls that can be connected together to create very high containment capacity for large equipment.

Available Containment Capacity:

• Ranges from 3,978 gallons to 83,582 gallons.

Frac Tank Containment Berm

If you need a portable containment berm to provide containment for a frac tank, we recommend this heavy duty berm for equipment storage.

The berm offers heavy duty chemical resistant liner with 12 inch high walls that offer plenty of containment capacity.

The aluminum L bracket design is light weight and portable which allows you to setup the berm anywhere it is needed.

Available Sizes:

• 747 gallons: 10'W x 10'L x 1'H
• 1,076 gallons: 12'W x 12'L x 1'H
• 2,331 gallons: 12'W x 26'L x 1'H
• 3,227 gallons: 12'W x 36'L x 1'H
• 4,482 gallons: 12'W x 50'L x 1'H
• 5,647 gallons: 14'W x 54'L x 1'H
• 5,602 gallons: 15'W x 50'L x 1'H
• 7,395 gallons: 15'W x 66'L x 1'H

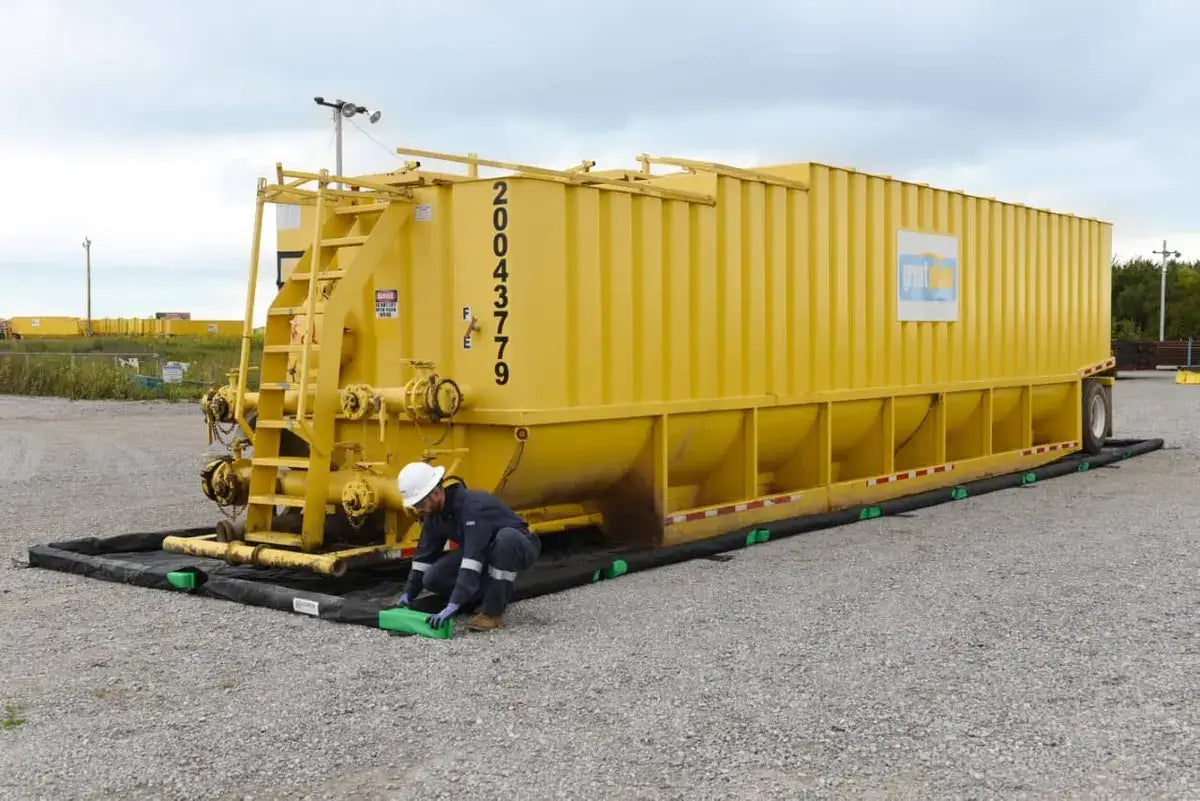

Frac Tank Berm

Ultra offers a drive over foam wall berm with very long dimensions designed for a frac tank.

The foam wall berm allows vehicles to drive over the walls the without damaging the foam wall design.

• Available dimensions up to 15'x72'.
• Containment capacity up to 2,692 gallons.
