Fuel Tank Spill Containment

500 Gallon Fuel Tank Containment

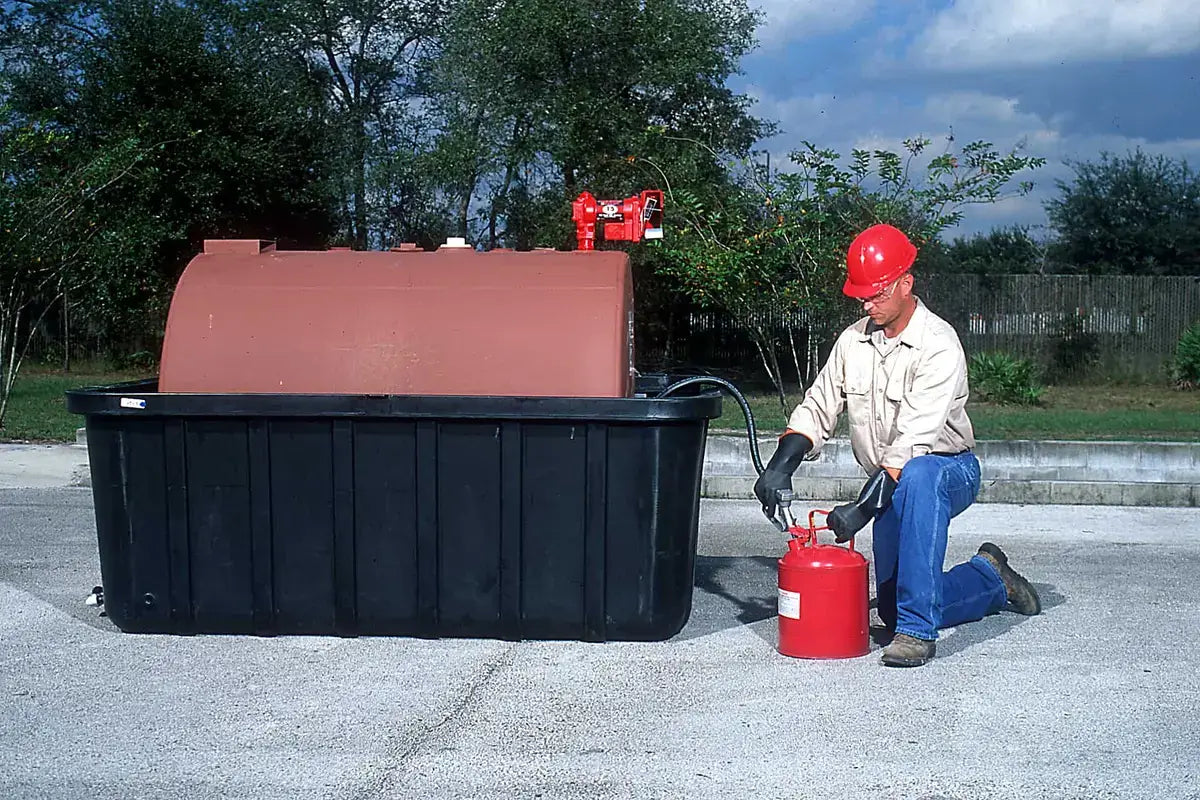

If you need containment for a 500 gallon fuel tank, we recommend this containment sump which provides 605 gallons of containment.

The 605 gallon containment size will meet the 110% containment requirement for fuel tanks up to 550 gallons.

Dimensions:

• 89"L x 60.5"W x 33"H: 605 gallons total containment

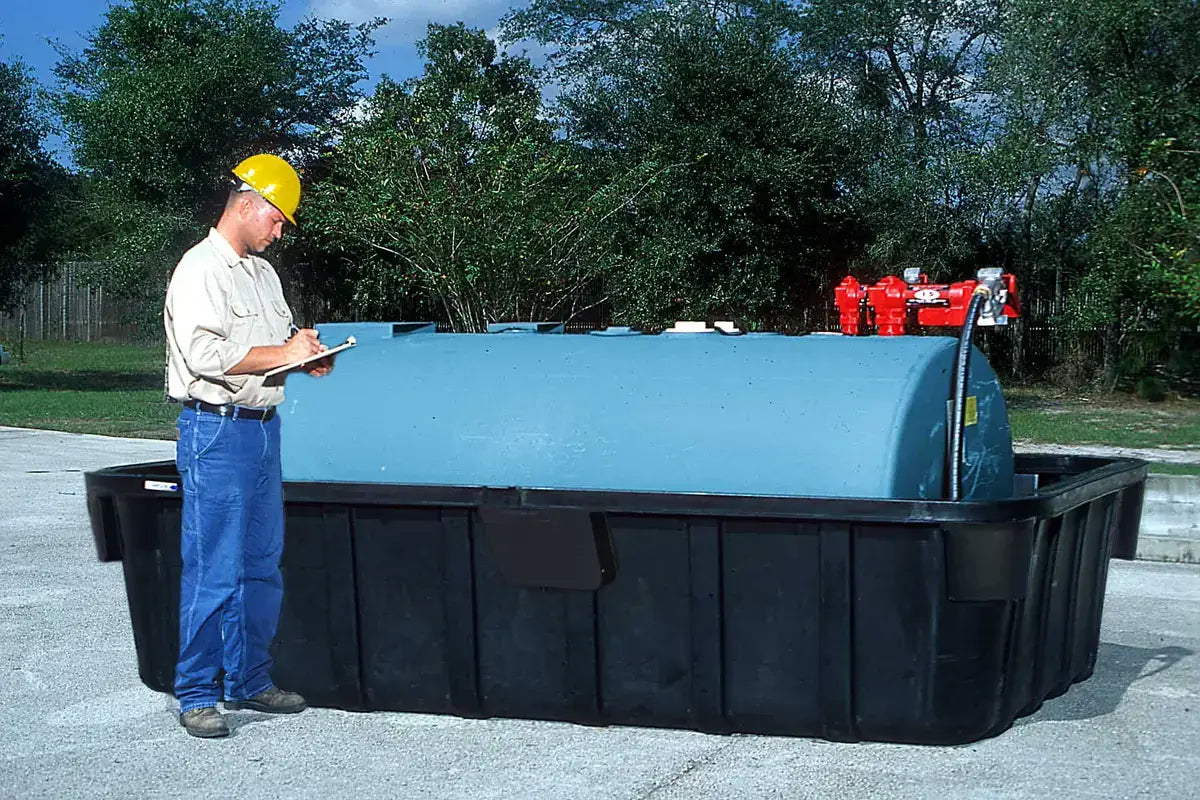

1000 Gallon Fuel Tank Containment

For larger, 1,000 gallon fuel tank containment needs, we recommend a larger containment sump that provides 1,100 gallons of total containment capacity.

Dimensions:

• 149"L x 64"W x 33"H; 1,100 gallons total containment capacity.

Fuel Tank Containment System

For very large fuel tanks that have larger capacity containment requirements, we recommend using a larger fuel berm.

This berm offers heavy duty chemical resistant liner and containment capacity sizes up to 7,395 gallons.

Available Dimensions:

• 747 gallons: 10'W x 10'L x 1'H
• 1,076 gallons: 12'W x 12'L x 1'H
• 2,331 gallons: 12'W x 26'L x 1'H
• 3,227 gallons: 12'W x 36'L x 1'H
• 4,482 gallons: 12'W x 50'L x 1'H
• 5,647 gallons: 14'W x 54'L x 1'H
• 5,602 gallons: 15'W x 50'L x 1'H
• 7,395 gallons: 15'W x 66'L x 1'H

Fuel Tank Containment Tub

If you need containment options for smaller fuel tank sizes, we recommend this 360 gallon containment sump tub for smaller fuel tank sizes.

The 360 gallon gallon containment size can provide 110% containment for fuel tanks up to 327 gallons.

Dimensions:

• 84.5"L x 44"W x 29"H - 360 gallon containment capacity.

Fuel Containment Pan

If you need portable containment for gas cans, chemicals, and other small equipment, this fuel containment pan is a great option.

The fuel containment pan is light-weight and offers heavy duty chemical resistant liner.

Available containment capacity ranges from 23 gallons to up to 155 gallons.

Available Sizes:

• 3' x 3' - 23 gallons / 4 inch end walls
• 4' x 4' - 39 gallons / 4 inch end walls
• 5' x 5' - 62 gallons / 4 inch end walls
• 5' x 10' - 155 gallons / 5 inch end walls
