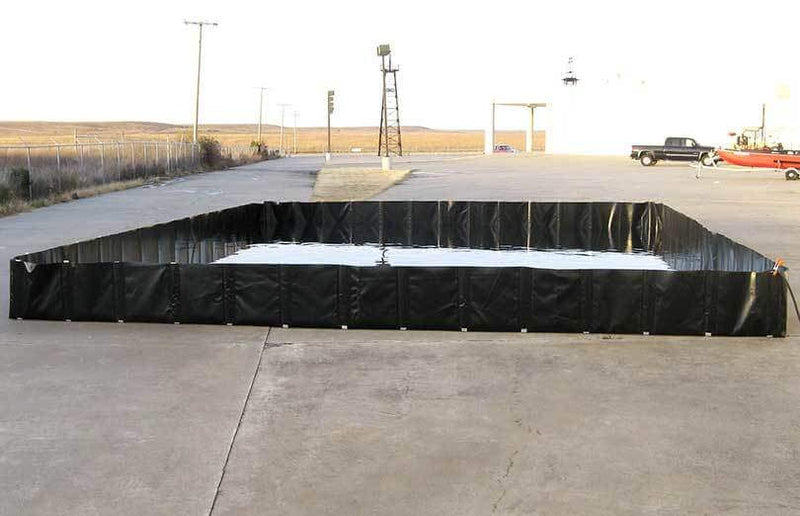

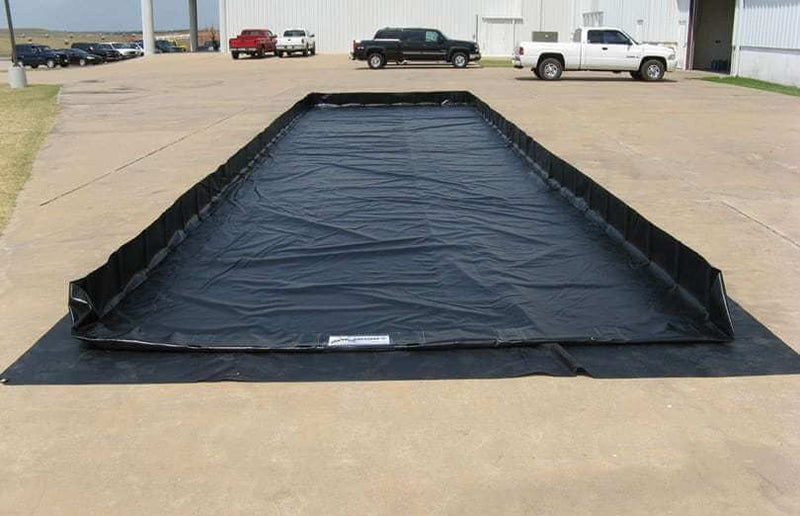

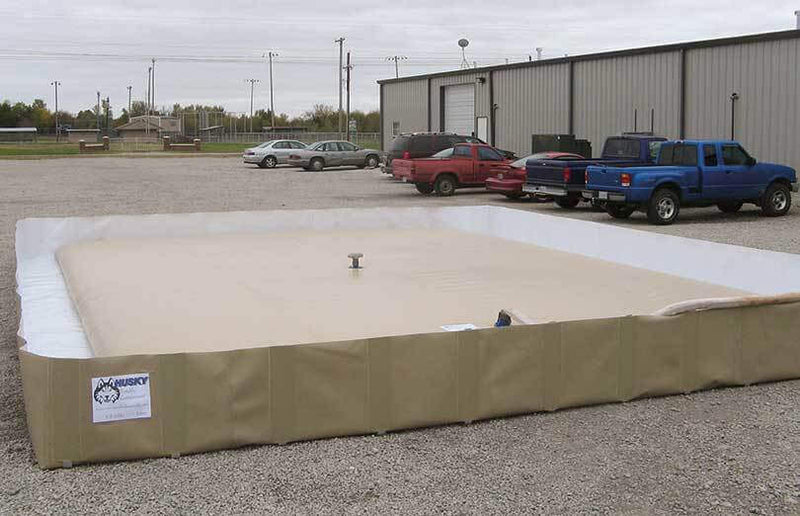

Husky Portable Containment Patriot Series heavy duty aluminum angle bracket berms are designed to provide secondary spill containment fuel tanks, frac tanks, pallets, totes, chemicals, machinery and equipment.

Patriot Series Berm Applications:

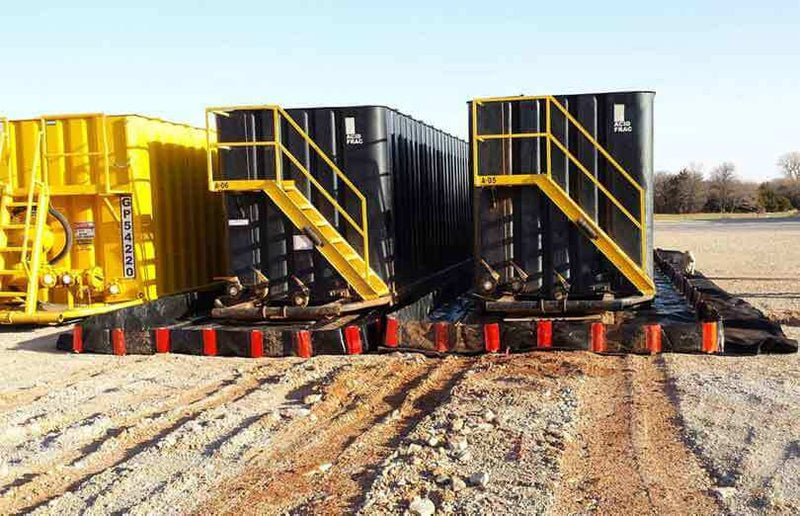

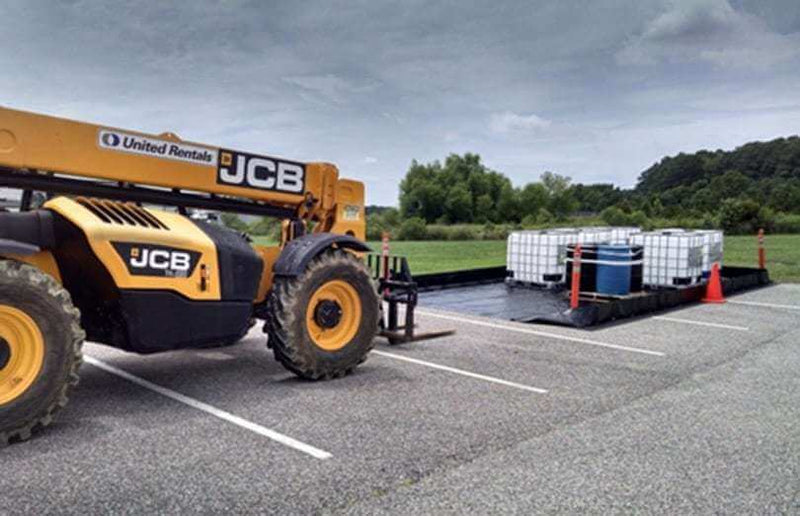

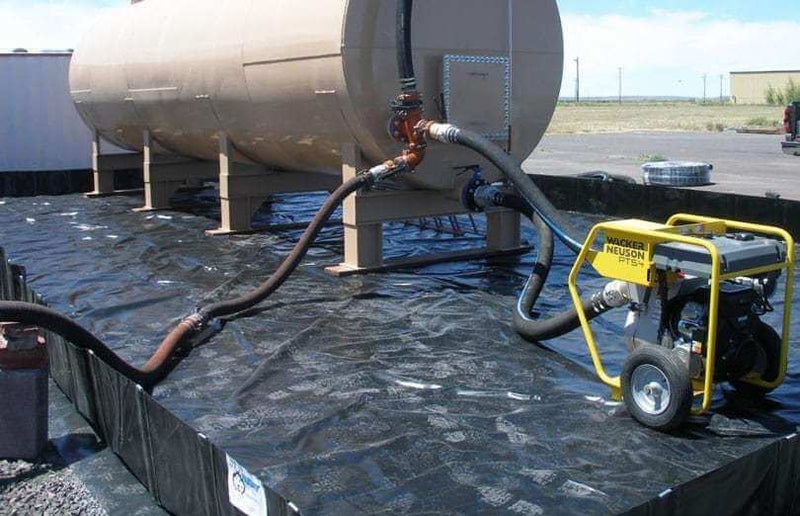

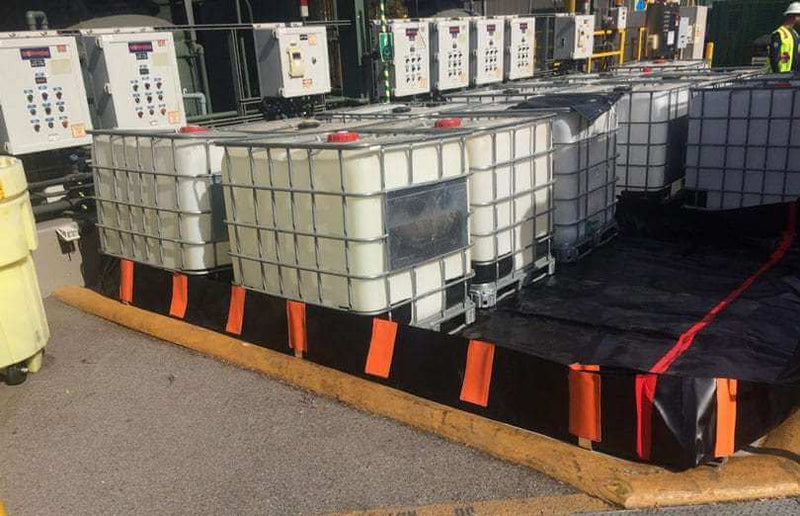

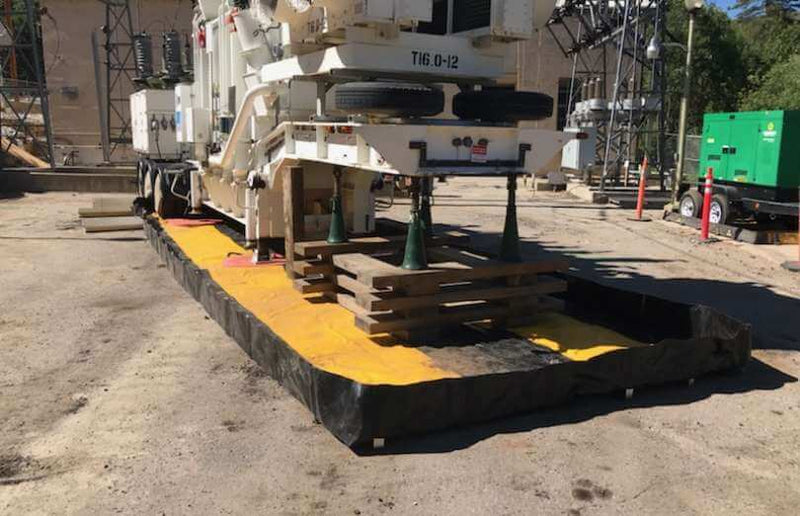

• Storing fuel tanks, chemical tanks, waste drums, totes, machinery and equipment.

Husky's aluminum angle berms are easy to use with minimal setup time. The major benefit of having separate aluminum angle pieces is the individual brackets are lighter to handle than a one piece continuous containment berm.

The individual angle brackets come in their own storage bag which makes transportation much easier for a smaller crew.

• When moving equipment into or out of the berm, it takes a single person just one minute to bring the end walls down to ground level.
• Two people can set up a 12' x 50' berm in less than 10 minutes.

Berm Liner: Choose from Exlon liner or XR-5 30 ounce liner

• Exlon Liner: is an ethylene interpolymer alloy designed for UV resistance, heat resistance, abrasion, puncture resistance, and excellent cold cracking quality.
• XR-5 Liner: is compatible with harsh liquids and includes low thermal expansion / contraction and superior UV / chemical resistance with tensile strength.

Note: secondary containment requirements vary by local municipality but can often require up to 110% containment of the largest container.  Always confirm secondary containment requirements in your local area.

• 500 gallon fuel tank would require 550 gallons or greater of containment to meet the 110% requirement.

Patriot Heavy Duty Berm Features:

• 6061-T16 aluminum angle brackets bend to 90 degrees.
• Heavy duty design with easy setup and quick assembly.
• 2 people can set up a 12' x 50' berm in less than 10 minutes.
• Remove brackets for ingress and egress in less than one minute.
• Separate storage bags for the berm and angle brackets.
• Patriot series berms are lighter to handle than one-piece berms.
• Choice of Exlon or XR-5 liner.
• 3 year manufacturer warranty.

Optional Accessories:

• Optional ground covers, tread pads and track belting.

Available Sizes & Dimensions (Width x Length x Height):

• 747 gallons: 10'W x 10'L x 1'H / 37 pound berm / 39 pound bracket
• 1,076 gallons: 12'W x 12'L x 1'H / 50 pound berm / 46 pound bracket
• 2,331 gallons: 12'W x 26'L x 1'H / 95 pound berm / 71 pound bracket
• 3,227 gallons: 12'W x 36'L x 1'H / 124 pound berm / 89 pound bracket
• 4,482 gallons: 12'W x 50'L x 1'H / 173 pound berm / 113 pound bracket
• 5,647 gallons: 14'W x 54'L x 1'H / 210 pound berm / 124 pound bracket
• 5,602 gallons: 15'W x 50'L x 1'H / 210 pound berm / 117 pound bracket
• 7,395 gallons: 15'W x 66'L x 1'H / 268 pound berm / 149 pound bracket

Additional Options:

• Check other Husky Spill Containment or other Drive On Spill Containment options.
