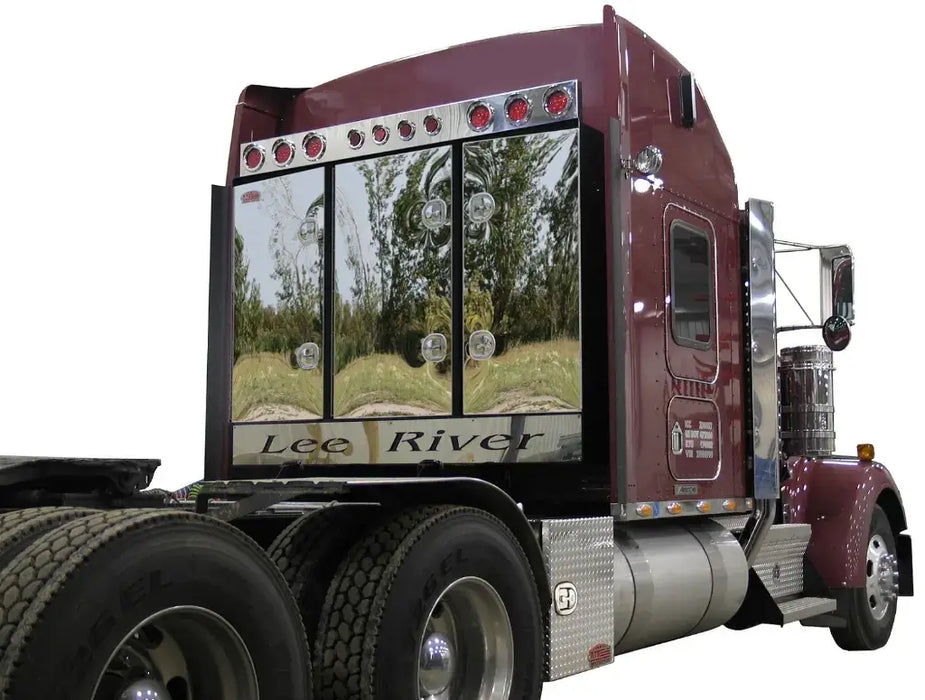

The ATB enclosed semi truck headache rack is available in a 3 door design with optional top toolboxes for additional storage.

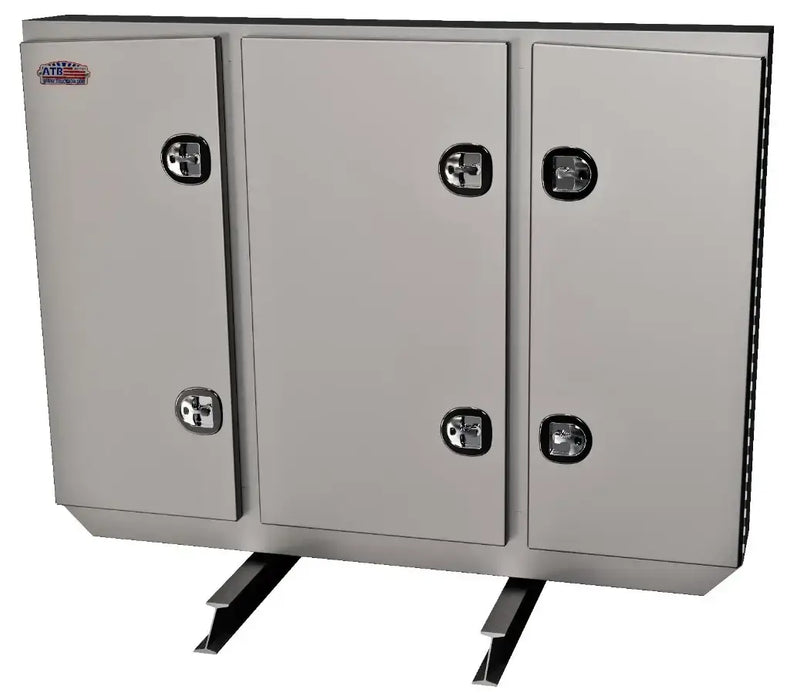

Choose a smooth aluminum or stainless steel door design.
The ATB headache racks can be mounted with SX-beam or flush mount on top of the frame.
The headache racks with enclosed storage are ideal for storing chains, binders, straps, tarps, tools or personal gear.
Note: the pictures for the toolbox option only include the stainless steel version.
Optional Accessories:
- Black or White powder coated body (does not include doors).
- Top mounted light bar.
- U-Bolt mounting kit.
Note: Mounting is not included, but is available as an optional accessory.
ATB Enclosed Semi Truck Headache Rack Features:
- Choose .125 inch smooth aluminum or stainless steel doors.

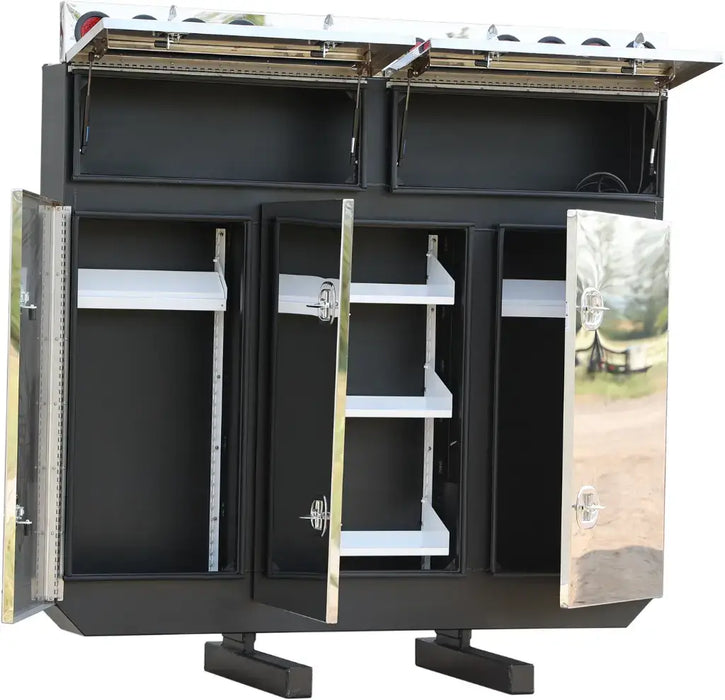

- Choose standard 3 door or 3 door with top mounted tool boxes.
- Fully seam welded on all seams and corners.
- Stainless steel continuous hinge on full length of door.
- Fully concealed rain gutter with automotive weather seal.
- Lockable SS Dolphin Tail HD adjustable T-Handle latch.
- Corners are gusseted for additional strength and durability.
- Front and rear plate gussets on base mounting.
- SX-Beam or optional flush mount system.

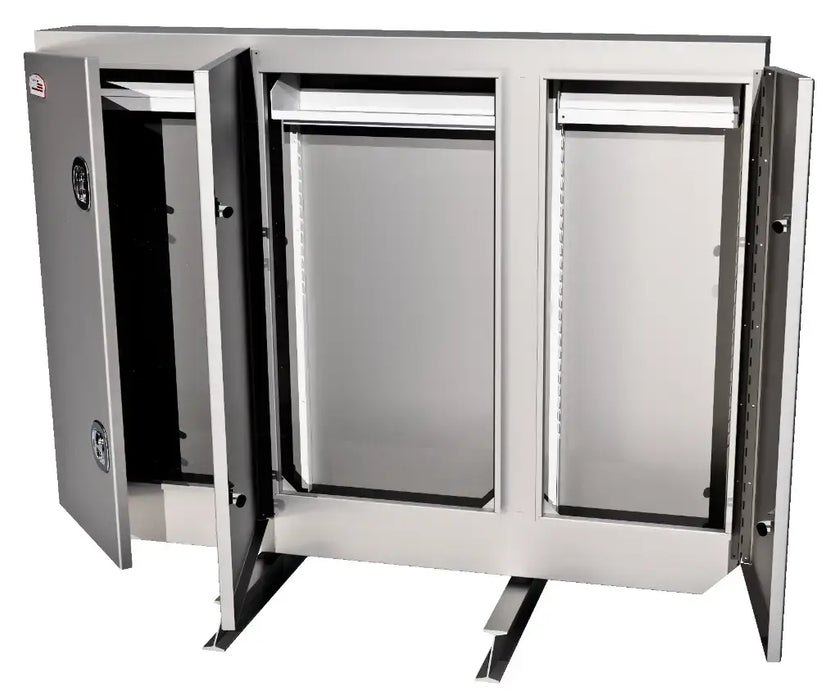

- Adjustable shelves and chain hangers.
ATB Enclosed Semi Truck Headache Rack Sizes & Dimensions:
3 Door Aluminum
-
76"L x 12"W x 52"H: 256 pounds
-
80"L x 12"W x 60"H: 279 pounds
-
80"L x 14"W x 68"H: 280 pounds
-
84"L x 14"W x 68"H: 288 pounds
3 Door Aluminum with Top Mount Toolboxes
-
77"L x 14"W x 72"H: 324 pounds
-
80"L x 12"W x 72"H: 332 pounds
-
84"L x 12"W x 72"H: 346 pounds
-
84"L x 14"W x 68"H: 381 pounds
-
92"L x 22"W x 72"H: 454 pounds
3 Door Stainless Steel
-
76"L x 12"W x 52"H: 262 pounds
-
80"L x 12"W x 60"H: 296 pounds
-
80"L x 14"W x 68"H: 309 pounds
-
84"L x 14"W x 68"H: 348 pounds
3 Door Stainless Steel with Top Mount Toolboxes
-
77"L x 14"W x 72"H: 362 pounds
-
80"L x 12"W x 72"H: 360 pounds
-
84"L x 12"W x 72"H: 375 pounds
-
84"L x 14"W x 68"H: 425 pounds
-
92"L x 22"W x 72"H: 498 pounds
Other Tool Box Options:
American Truckboxes offers a 90 day limited warranty on all purchases.
This LIMITED WARRANTY is made by American Truckboxes to the original retail purchaser of Product.
AMERICAN TRUCKBOXES WARRANTS THAT THIS PRODUCT WILL BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP FOR A PERIOD OF NINETY (90) DAYS FROM DATE OF PURCHASE BY THE ORIGINAL RETAIL PURCHASER.
If you discover that the Product fails to fulfill the warranty before the warranty period, it is your responsibility to contact American Truckboxes to make arrangement for inspection of this Product. If American Truckboxes determines a defect exists, American Truckboxes shall, at its option and expense, repair or replace any defective parts.
All warranty repairs shall be made by an authorized American Truckboxes product dealer or American Truckboxes approved serviceman. Any part or parts of the Product not manufactured by American Truckboxes are not warranted for any purpose. This warranty shall not apply if the American Truckboxes Product has been
subject to abnormal service or handling, improper maintenance, misuse or alteration made by anyone other than American Truckboxes, or a product dealer of American Truckboxes, its approved service personnel or company.
THIS WARRANTY PRINTED ABOVE IS THE ONLY WARRANTY TO THIS PURCHASE. ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED.
AMERICAN TRUCKBOXES SHALL NOT BE LIABLE FOR ANY INCIDENTIAL OR CONSEQUENTIAL DAMAGES RESULTING OUT OF ANY BREACH OF THIS WARRANTY, NOR SHALL THE DAMAGE
EXCEED THE RETURNED AMOUNT OF THE PURCHASE PRICE PAID BY THE ORIGINAL
PURCHASER.
This Warranty is in lieu of all other warranties, express or implied. No modification to this warranty policy shall be made by any personnel or party.
If, within thirty (30) days after your discovery of any warranty defects within the warranty period, you notify American Truckboxes thereof in writing, American Truckboxes shall, at its option, repair, correct or replace F.O.B. point of manufacture, or refund the purchase price for, that portion of the Product found by you to be defective.
Failure by you to give such written notice within the applicable time period shall be deemed an absolute and unconditional waiver of your claim for such defects. Products repaired or replaced during the warranty period shall be covered by the foregoing warranty for the remainder of the original warranty period or ninety (90) days from the date of shipment, whichever is longer. You assume all responsibility for any loss, damage, or injury to persons or property arising out of, connected with, or resulting from the use of the Product,
either alone or in combination with other products/components.
