ATB heavy duty steel cylinder tank storage boxes provide secure, lockable storage for cylinder tanks. The cylinder stank storage cabinets are available in aluminum or steel.
The tank storage box design includes top & bottom tank saddles for tank security. Storage boxes are designed to hold up to 2 or 3 tanks.
The tank storage boxes are designed for outdoor use with waterproof features including a concealed rain gutter and automotive bulb sealing.

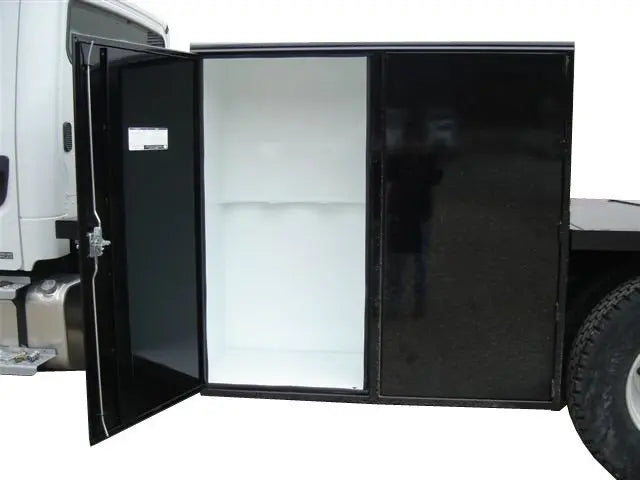

The tank storage box can be mounted on a truck flatbed or trailer.
ATB Tank Storage Box Features:
- 14 gauge steel design.
- Choose Right or Left side open doors.
- Choose Single or Double door design.
- Fully seam welded on all seams and corners.
- Stainless steel continuous hinge on full length of the door.
- Channel braced reinforced door with gas spring door supports.
- Lockable SS Dolphin Tail heavy duty adjustable T-Handle 3 point latch.
- Rain gutter and automotive type weather seal.
- Zinc epoxy primer with powder baked topcoat finish.

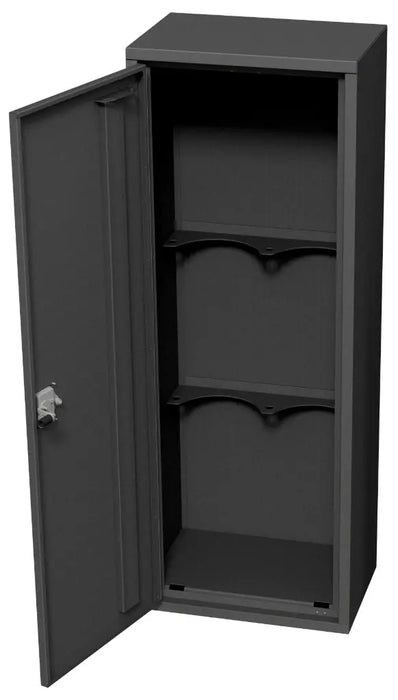

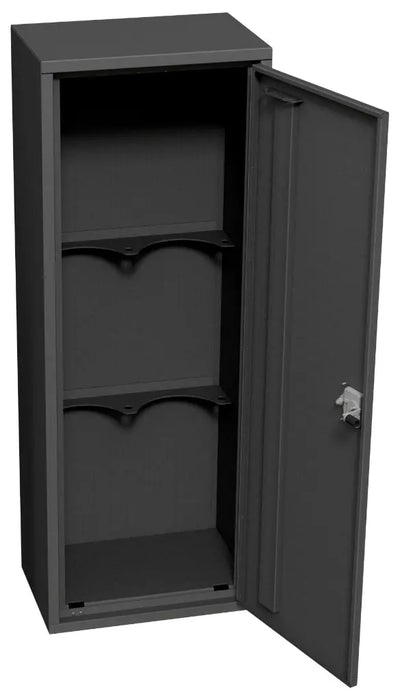

- Top & Bottom tank saddles for positive tank security.
- Heavy duty 1/8 inch thick reinforced floor for tanks.
Tank Storage Box Optional Features:
- Optional L Shape side deck mount.
- Optional Mounting Kit.
Tank Storage Box Door Height:
- All tank storage boxes have a 60 inch door opening height.

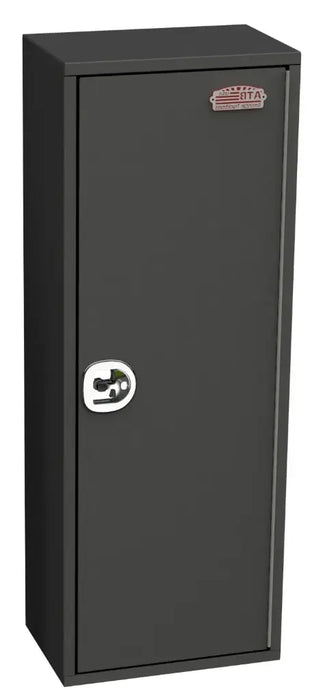

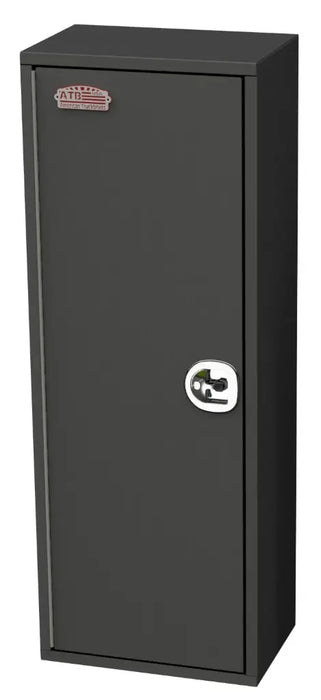

Steel Single Door Tank Storage Box Dimensions:
-
24"L x 16"W x 65"H: 2 tanks / Door Opening Length 19.5" / 169 pounds
-
30"L x 18"W x 65"H: 2 tanks / Door Opening Length 25.5" / 211 pounds
-
36"L x 20"W x 65"H: 3 tanks / Door Opening Length 31.5" / 258 pounds
-
36"L x 24"W x 65"H: 3 tanks / Door Opening Length 31.5" / 290 pounds

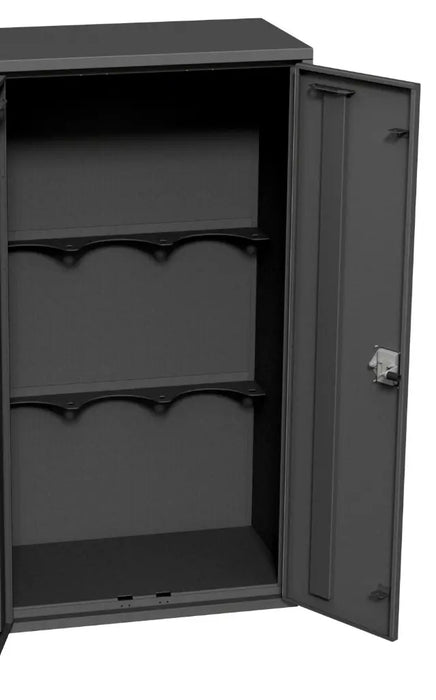

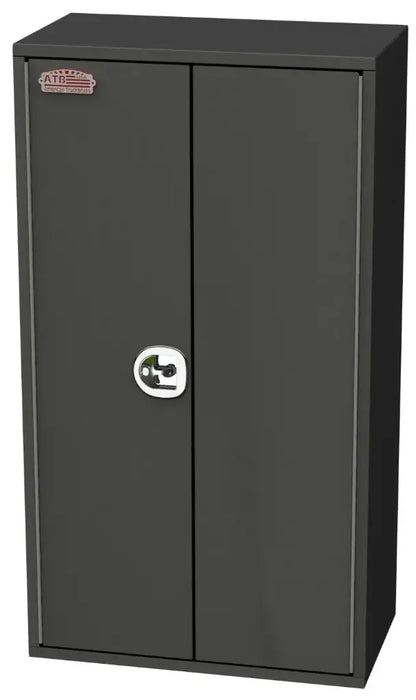

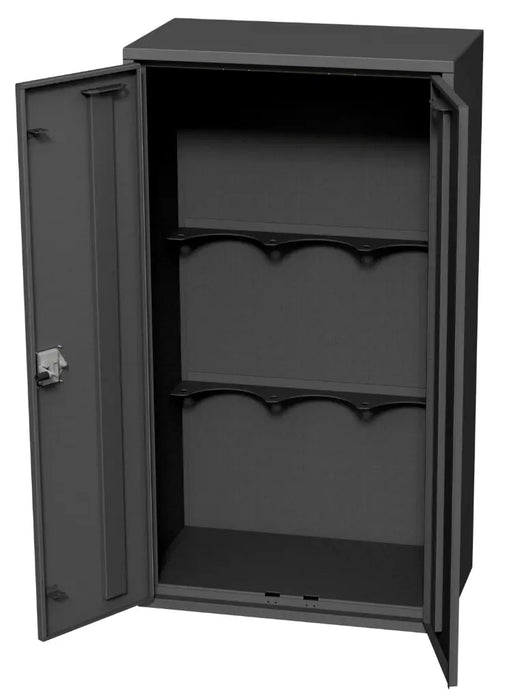

Steel Double Door Tank Storage Box Dimensions:
-
24"L x 16"W x 65"H: 2 tanks / Door Opening Length 19.5" / 172 pounds
-
30"L x 18"W x 65"H: 2 tanks / Door Opening Length 25.5" / 214 pounds
-
36"L x 20"W x 65"H: 3 tanks / Door Opening Length 31.5" / 262 pounds
-
36"L x 24"W x 65"H: 3 tanks / Door Opening Length 31.5" / 293 pounds
