ATI Reelcraft Spring Retractable Fuel Hose Reel

SKU

Questions? Call our US Based team: 1-800-964-5341 (9am-9pm; 7 days a week)

Original price $811.31 - Original price $1,642.86
Original price
$811.31
$811.31 - $1,642.86
Current price $811.31

1 week estimated lead time

We have limited stock for some products which can ship in 3 to 4 days.

Please call or use the Request Custom Quote form (below) for the most current lead times.

Custom Tank Sizes Available: Call or Use Custom Quote form below.

Request Volume Ship Quote or Custom Tank Size

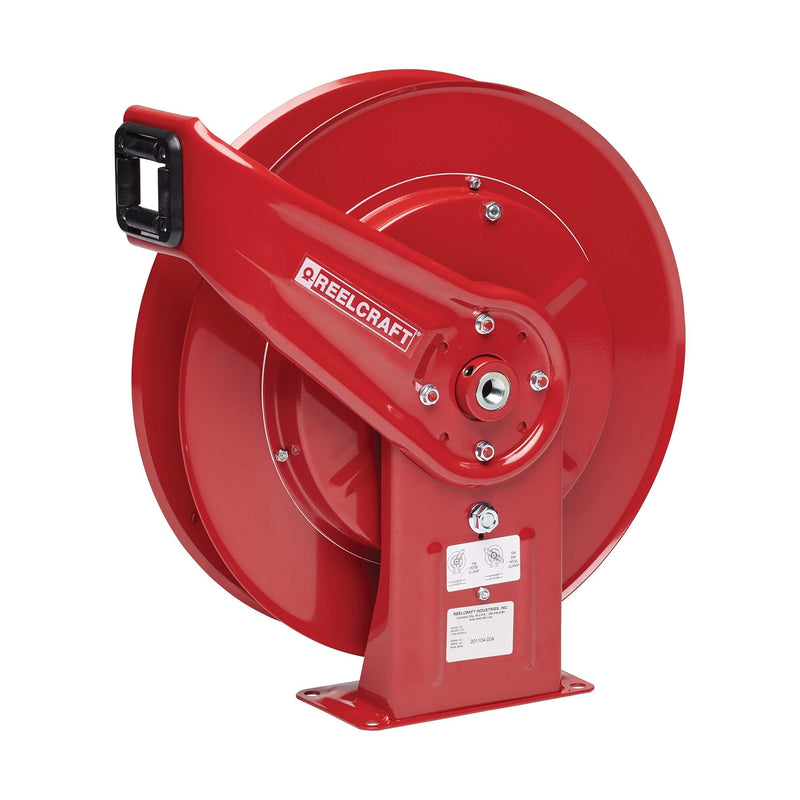

ATI Reelcraft's spring retractable fuel delivery hose reels works with all ATI fuel transfer tanks. All hoses are 3/4 inches. Choose from 25 foot, 50 foot, or 75 foot sizes.

Reelcraft's fuel delivery hose reel is equipped with Viton seals, incorporate metal forms to ensure the greatest possible strength and are ideal for mobile and permanent-mount applications.

These rugged, corrosion-resistant reels are suitable for a wide variety of fuel applications.

Features:

  • Robust latching mechanism – Latch and ratchet are made of heavy-duty cast aluminum with substantial surface area to limit the opportunity for premature wear.
  • Full flow stress free swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to ensure maximum service life.
  • Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.

*Reel is shipped in the top wind position. The reel image is shown in the side wind position.

    Can I use your refueling tanks for gasoline legally?

    Yes, we manufacture our aluminum refueling tanks to meet and exceed the requirements for gasoline, kerosene, methanol, and diesel. In fact, many government agencies are currently using our aluminum refueling tanks.

    Can I pump from your refueling tank without removing it from the bed of my truck?

    Yes it is legal to pump from our tanks while still in the bed of a truck whether the tank is being used for private, state, or commercial use.

    Do all of your fuel tanks have baffles inside?

    Yes, all of our tanks are baffled to provide strength and support and to reduce fuel sloshing.

    How Does your Fuel Shotz diesel fuel system work?

    This unique system connects the auxiliary fuel tank to the factory fuel tank via the factory filler. The auxiliary fuel tank keeps the factory fuel tank full until the auxiliary fuel tank is empty.

    Are the inside of your auxiliary and refueling tanks free of debris?

    Yes, all of our auxiliary and refueling tanks will be clean and free of debris on the inside and outside before leaving the factory.

    Are your tanks tested for leaks?

    Yes, all of our tanks are visually inspected and pressure tested for leaks. We also use a video inspection system to check for penetration on the inside of the tank.

    What is the aluminum fitting on top of my aluminum refueling tank?

    The aluminum fitting on top of your refueling tank is a fuel tank vent with rollover protection.

    Do your fuel tanks come with a warranty?

    Yes, all of our standard duty tanks and toolboxes come with a one year limited warranty. Our line of Severe Series tanks come with a 5 year limited warranty.

    Is Fuel Shotz for diesel fuel systems a legal fuel system?

    Yes, the Fuel Shotz system complies with DOT requirements, but you must install it per provided instructions.

    Do I need to ground my fuel tanks to the vehicle?

    Yes, the tanks need to be grounded at all times. When you install the fuel tank remove the paint from the underside of the truck bed where the tank gets bolted in. That will give a sufficient ground.

    How Do I mount my fuel tank?

    The fuel tank will come with mounting tabs welded to the tank. You will place the tank in the desired location, check for clearance underneath so you don’t drill into brake lines, fuel lines, etc. Drill and install one bolt, flat washer, lock washer , and nut. Tighten securely. Note: after drilling your mounting hole sand off any paint to bare metal on the bottom side of the truck bed around the bolt hole to ensure a good ground.

    Are your fuel tanks lockable?

    All of our refueling tanks come with a lockable fuel filler cap. We also offer an optional locking fuel cap for our auxiliary fuel tanks. You can take it a step further and check out our line of fuel safe auxiliary fuel tanks where the fuel filler and fittings are inside a lockable toolbox compartment.

    Can I get a black powder coat as an option on my fuel tank?

    Yes, we offer powder coat as an option. Our durable powder coat fuel tanks are very popular. Our standard color is gloss black but we also offer textures and many other colors.

    Can I get a fuel level gauge?

    es, fuel gauges are available as an option for all of our auxiliary fuel tanks and refueling tanks.

    Estimated Product Handling: 2 to 3 days

    Tank Retailer offers a 30 day return policy for all products. Please see our Return & Refund Policy for more information.

    Aluminum Tank Industries, Inc. warrants all products to be free of defects in material or workmanship for a period of 1 year from invoice ship date from our warehouse or purchase date if registered. Severe Series refueling tanks are covered for 5 years. If upon our inspection we deem the item to be defective, Aluminum Tank Industries, Inc. will determine whether to repair or replace the defective item.  It is the customers’ responsibility to ship the item to Aluminum Tank Industries, Inc. No cost for labor, installation, or missing contents will be reimbursed. Damages due to shipping and handling, improper installation, abuse – intentional or accidental, or normal wear and tear are not covered by this warranty. Warranty is void if the tank has been altered. Standard duty tanks are designed for use with transfer pumps up to 30 lbs. Installing a pump over 30 lbs on a standard duty tank will void warranty. A Severe Series tank is required if using a transfer pump over 30 lbs.
