Fol-Da-Tank Single Lane Rural Water Tank

SKU

Questions? Call our US Based team: 1-800-964-5341 (9am-9pm; 7days a week)

Original price $2,169.00 - Original price $4,619.00
Original price
$2,169.00
$2,169.00 - $4,619.00
Current price $2,169.00

1-2 week estimated lead time

Manual Freight Quote: Fol Da Tanks are required to ship by freight and we have to manually calculate freight.

We can provide you a freight quote by email if you use our Request a Freight Quote button below.

Request Freight Quote (Please include ship address)

The Fol-Da-Tank Single Lane Water Tank is a water tank designed for efficient fire fighting operations in rural areas with narrow roads.

The Single Lane tank is available with rectangular, circular or square tank with bladder designs.

The single lane tank design will give you maximum capacity on the ground without affecting the opposite lane of traffic. This design works especially well for narrow rural roads that have little or no shoulder.

Choose Single Lane Type I, Type II or Max models:

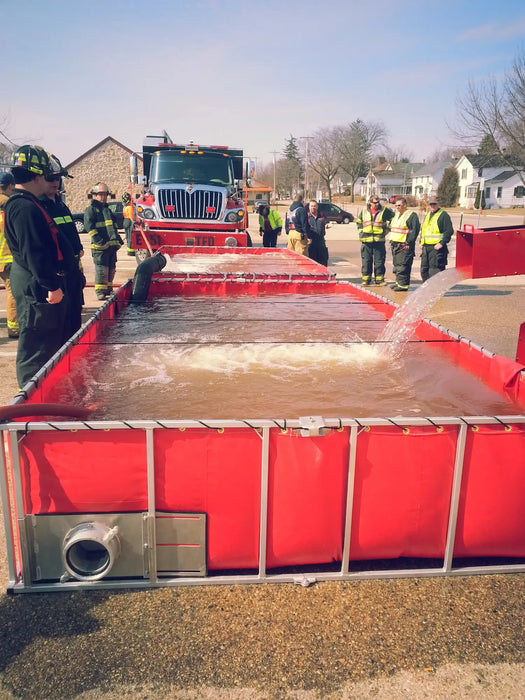

  • Type I - Rectangular shaped design.

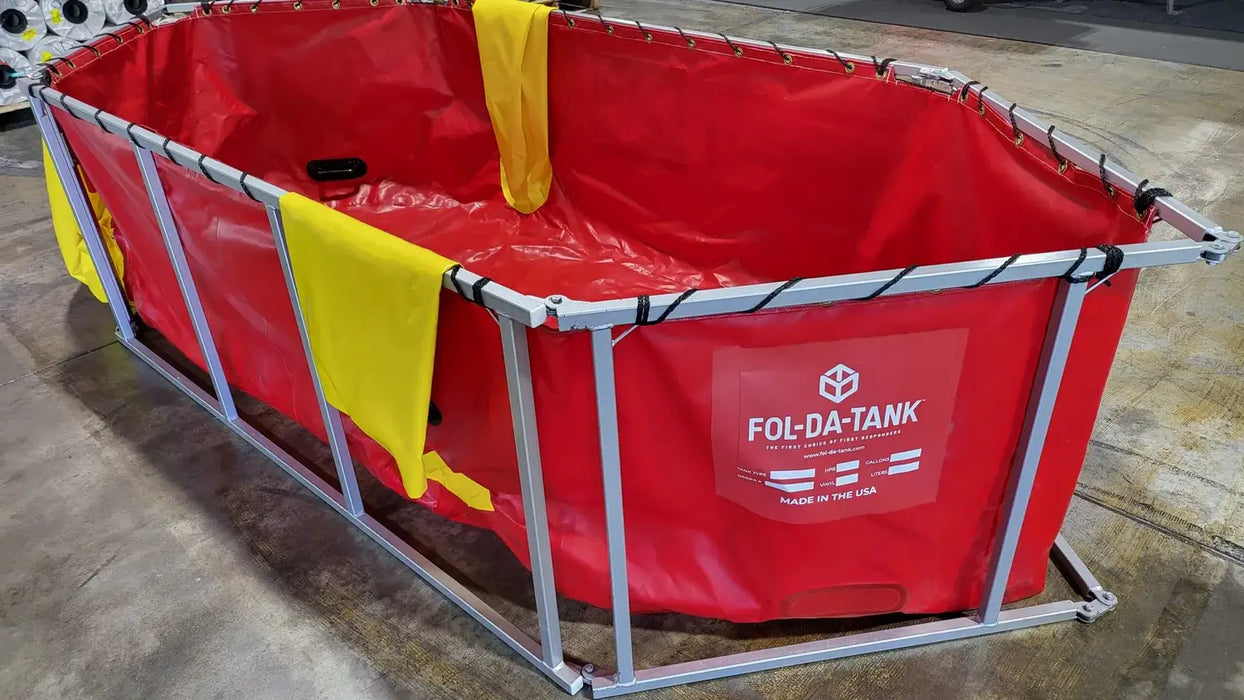

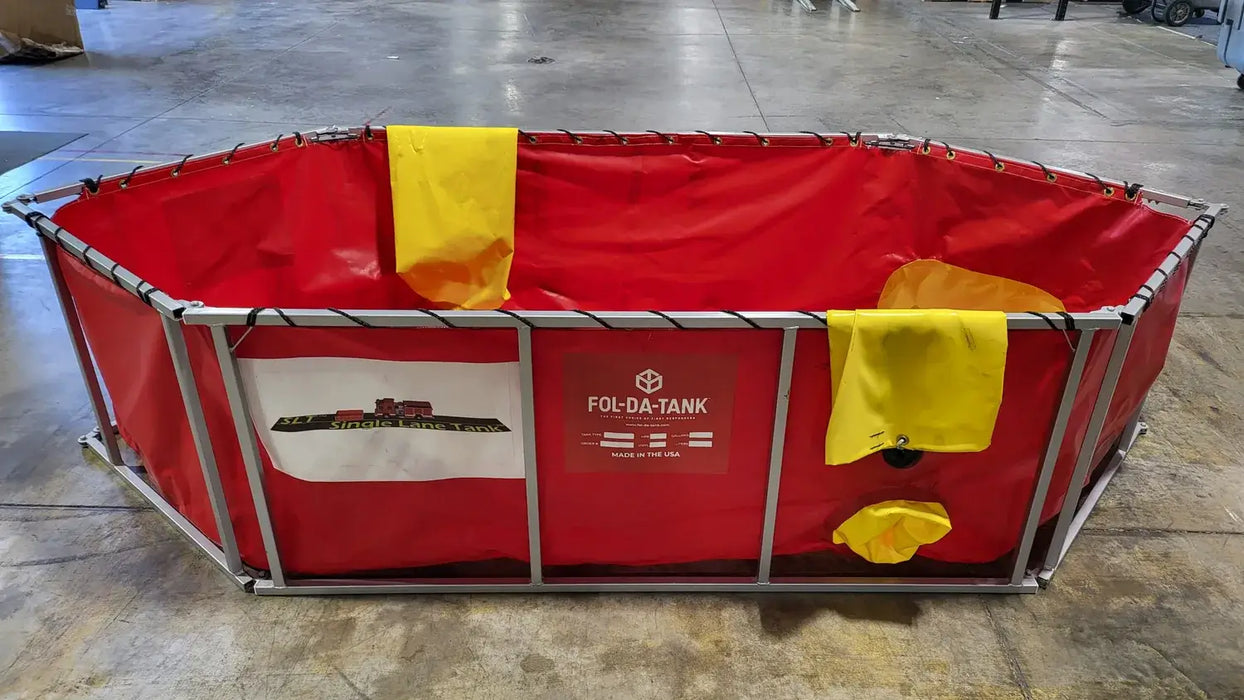

  • Type II - Circular shaped design.

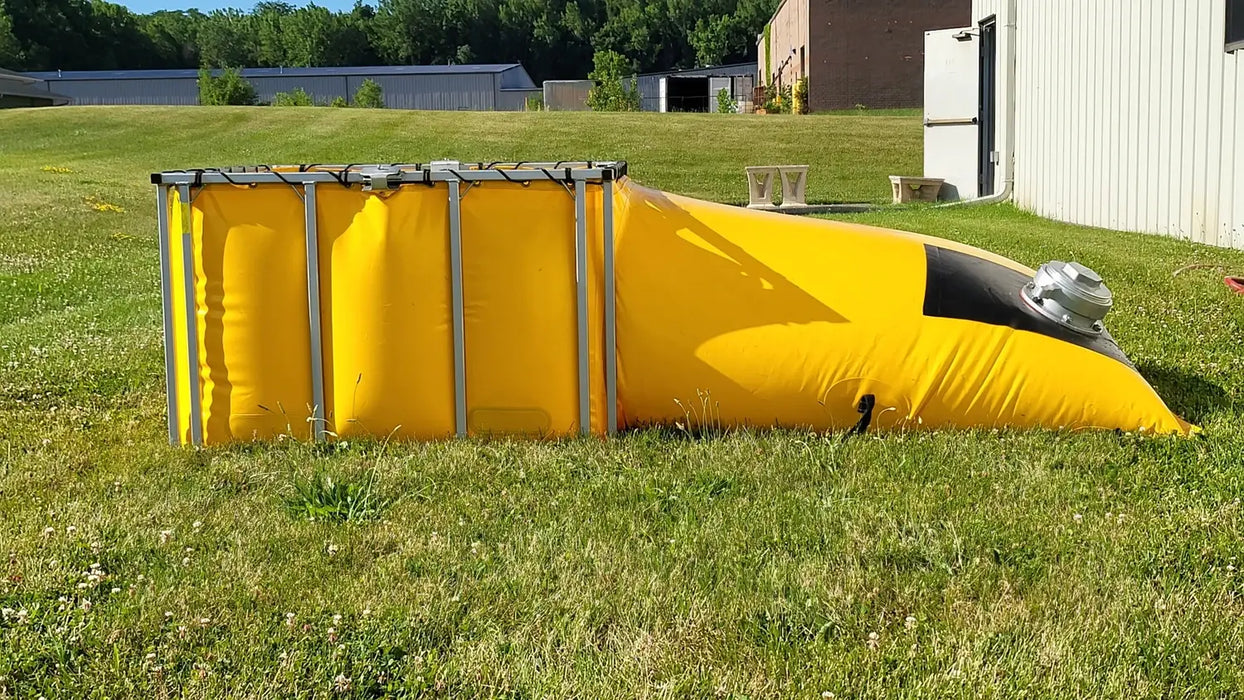

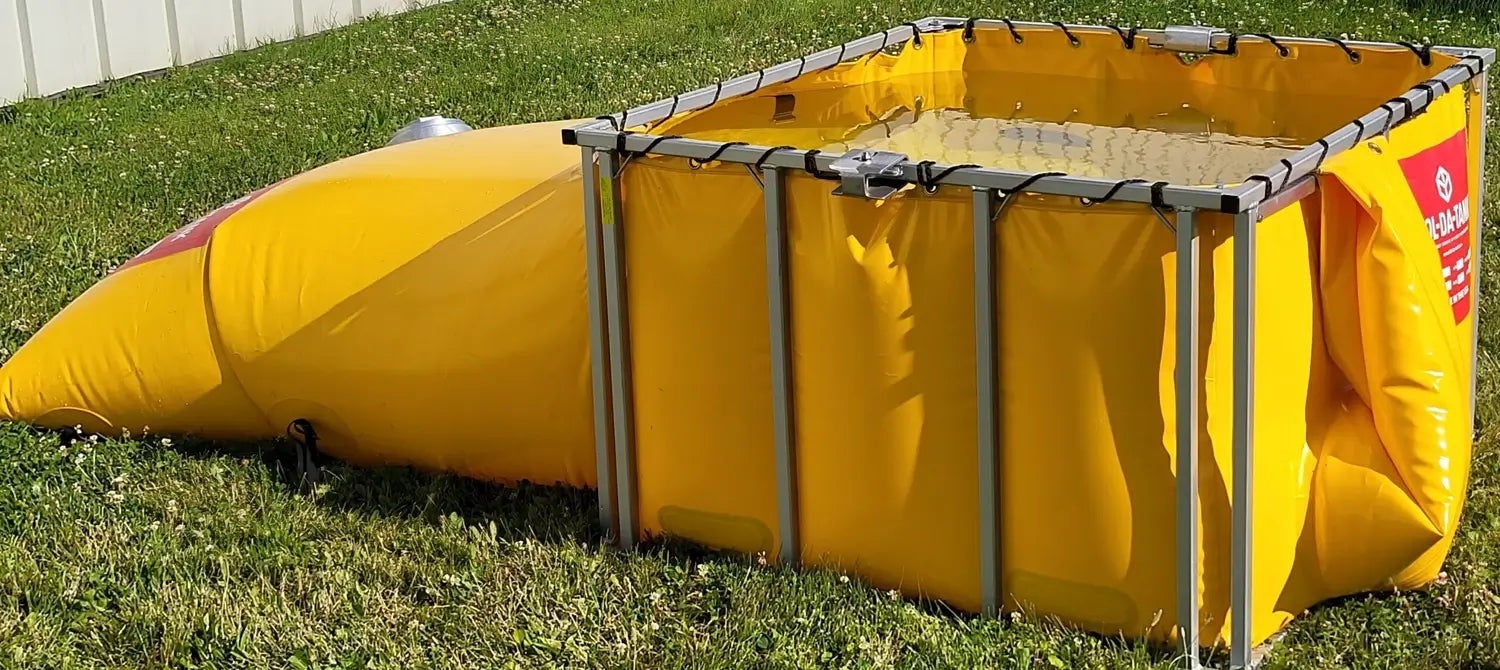

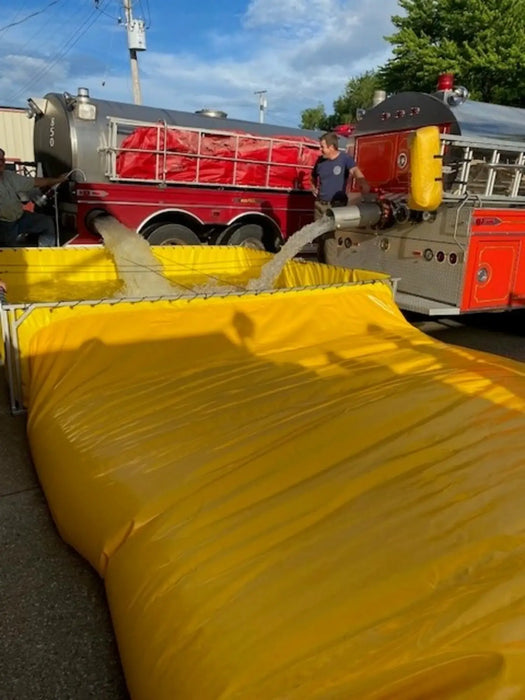

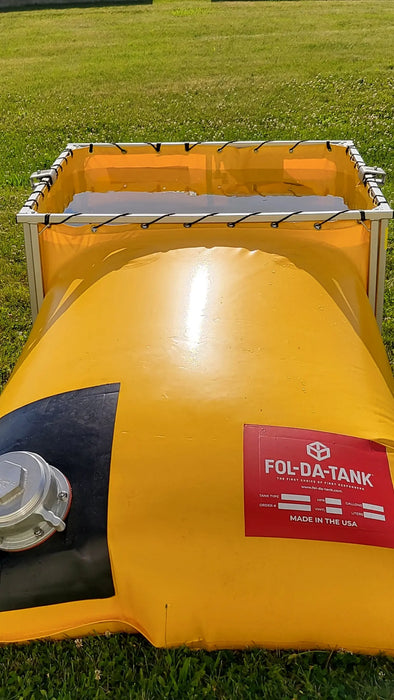

  • Max - Square shaped with built-in bladder for extra water storage capacity.

Features

  • Available in steel or aluminum.
  • Choose Rectangular, Circular or Square shaped tank.

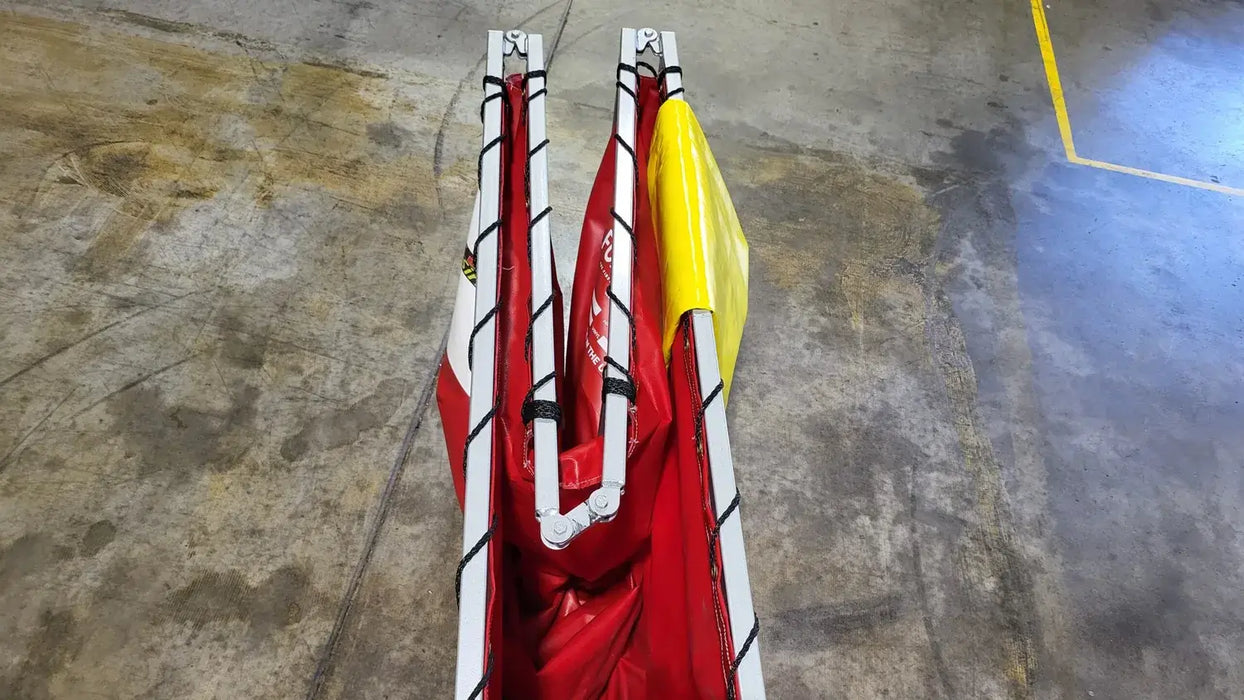

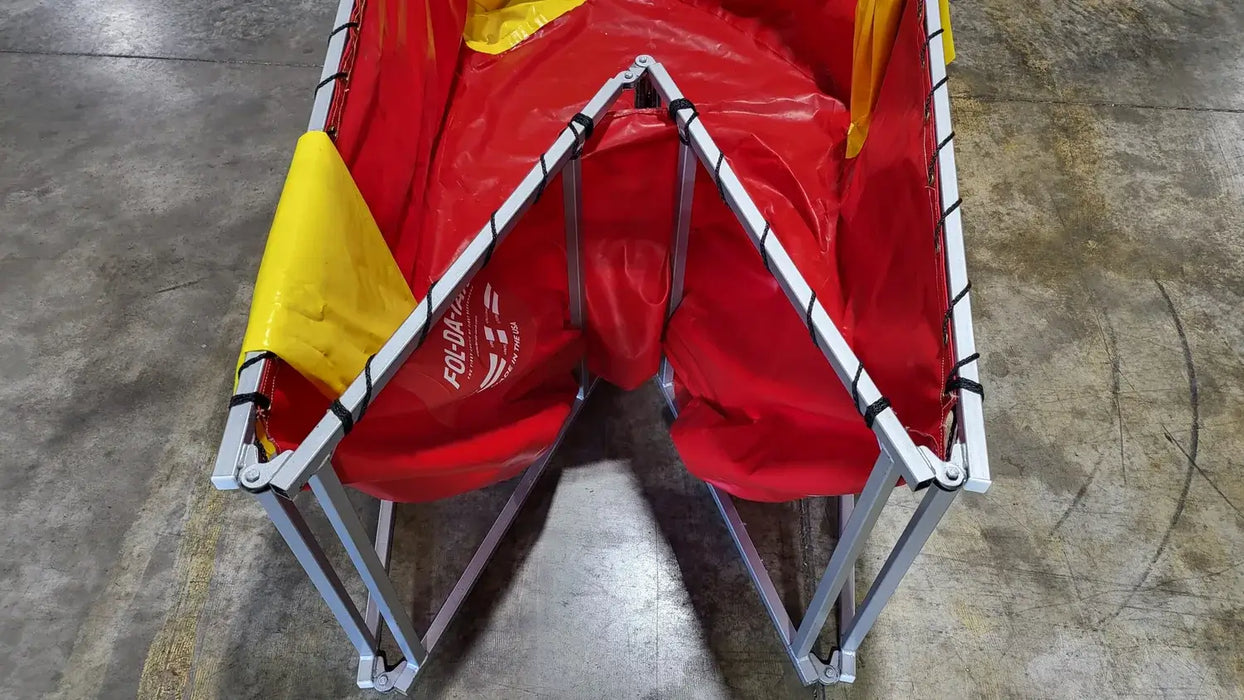

  • Narrow frame design for narrow rural roads with limited shoulders.
  • Narrow frame can be setup without impacting the opposing lane of traffic.
  • Max model offers built-in bladder for extra capacity.

Sizes / Dimensions / Closed Dimensions / weight (steel / aluminum)

Type I

  • 2,000 gallons: 168"L x 96"W x 29"H / 168"L x 8"W x 29"H / 165 / 125 pounds
  • 2,500 gallons: 192"L x 108"W x 29"H / 192"L x 8"W x 29"H / 165 / 130 pounds
  • 3,000 gallons: 192"L x 120"W x 29"H / 192"L x 8"W x 29"H / 165 / 135 pounds

Type II

  • 2,000 gallons: 228"L x 93"W x 29"H / 132"L x 8"W x 29"H / 165 / 125 pounds
  • 2,500 gallons: 264"L x 96"W x 29"H / 168"L x 8"W x 29"H / 175 / 130 pounds
  • 3,000 gallons: 276"L x 108"W x 29"H / 168"L x 8"W x 29"H / 185 / 135 pounds

Max / Tank / Tank + Bladder Gallons / Open Dimensions no bladder & with bladder

  • 1,000/2,500 gallons: 8'3"L x 8'3"W x 29"H / 8'3"L x 22'3"W x 29" w/ bladder
  • 1,500/3,500 gallons: 10'3"L x 10'3"W x 29"H / 10'3"L x 24'8"W x 29" w/ bladder
  • 2,100/5,000 gallons: 11'3"L x 11'3"W x 29"H / 11'3"L x 26'3"W x 29" w/ bladder

Max Tank Closed Dimensions / Weight (Steel / Aluminum)

  • 1,000/2,500 gallons: 8'3"L x 12"W x 29"H / 225 / 200 pounds
  • 1,500/3,500 gallons: 10'3"L x 12"W x 29"H / 245 / 220 pounds
  • 2,100/5,000 gallons: 11'3"L x 12"W x 29"H / 265 / 240 pounds

Liner Material

  • 22 ounce High Performance Rubber (HPR) for heavy duty applications
  • 22 ounce Vinyl standard material

Colors

*red and yellow only for HPR / vinyl available in the following colors:

  • Red
  • Yellow
  • Orange
  • Blue
  • Black

Additional Options:

When will my order deliver?

Orders are confirmed with a target ship date at the time the order is placed.

What are typical lead times?

Most items are less than 3 weeks.  Custom products may require longer.

What are the dimensions and weight of a tank?

For common size tanks, dimensions and weights are listed in our product brochure and on our website.

What are the flow rates for the float dock strainers?

Flow rates will vary from the design of the pump. 1500-2000 gpm is highly achievable in most Float Dock Strainer sizes.  Call our experts for more information.

What is the difference between a foot valve and a clapper valve?

A foot valve is mechanically spring operated and a clapper valve is a rubber seal that uses water weight to hold the prime or suction.
