Ultratech's flexible spill containment berms provide portable containment for tanks, generators, compressors and other heavy equipment.

Protects heavy equipment from spills during filling, discharging, cleaning and maintenance.

Spill Containment Types:

• Collapsible Wall Model - 12 inch side walls / swivel feet of PVC supports to raise or lower sidewalls.
• L Bracket Economy Model - 12 inch side walls / L brackets inserted to raise sidewalls.
• Compact Model - 12 inch side walls / aluminum struts inserted in sidewalls.

Note: the sidewalls are not designed to be driven over; sidewalls must be manually lowered to ground level in order to drive over with a vehicle.

Compliance Standards:

• Meets EPA Container Storage Regulation 40 CFR 264.175
• Meets SPCC - Spill Prevention, Control & Countermeasure Act

Available Liner:

• Copolymer-2000 - 28 oz

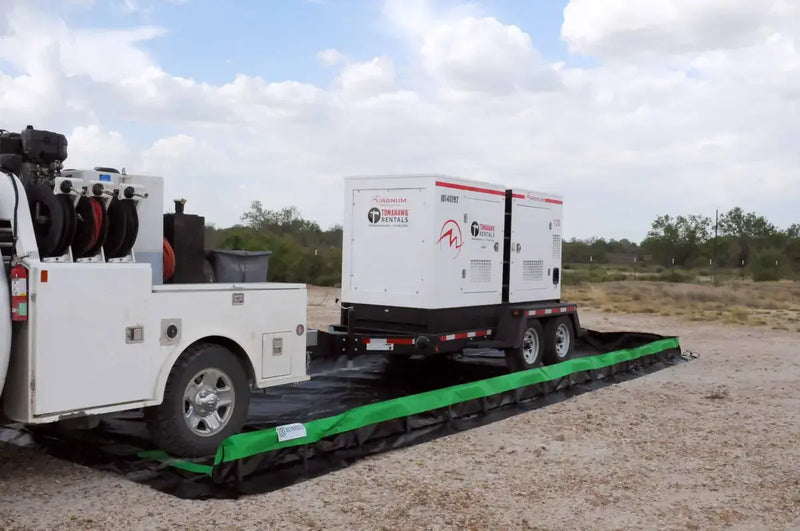

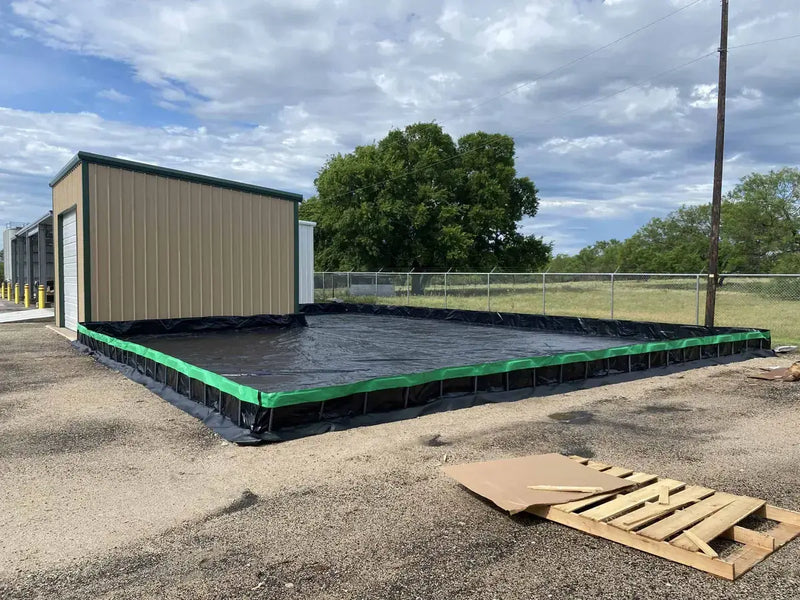

Collapsible Wall Model Features:

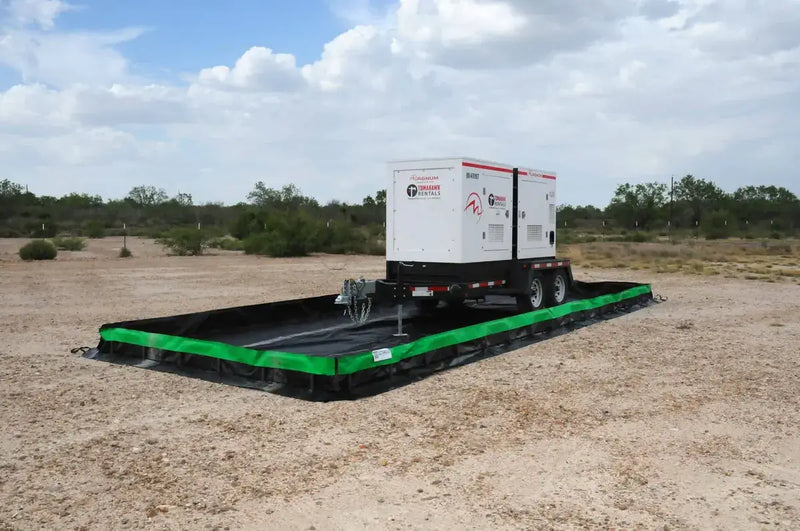

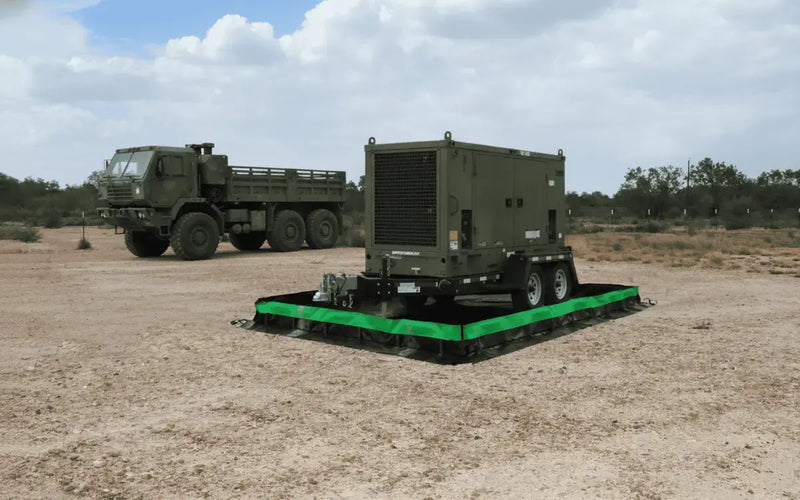

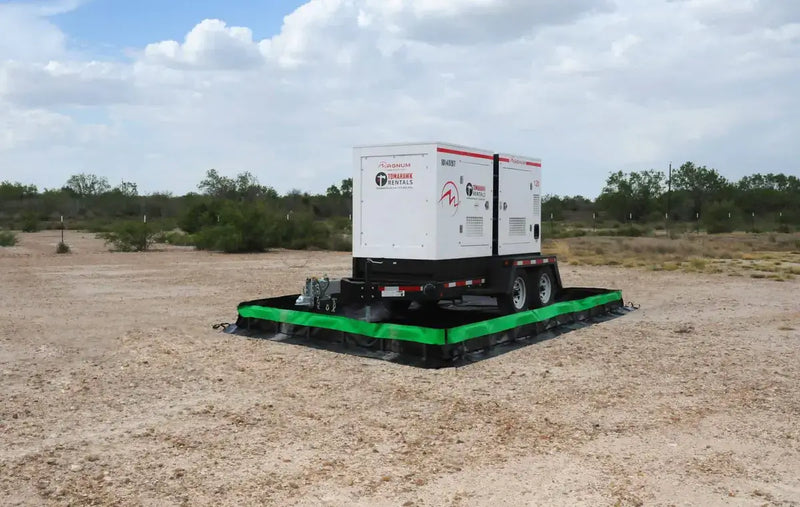

• Capture leaks and spills from tanks, generators and other equipment.
• 12 inch sidewalls.
• Rugged PVC sidewall assemblies for sidewall support.

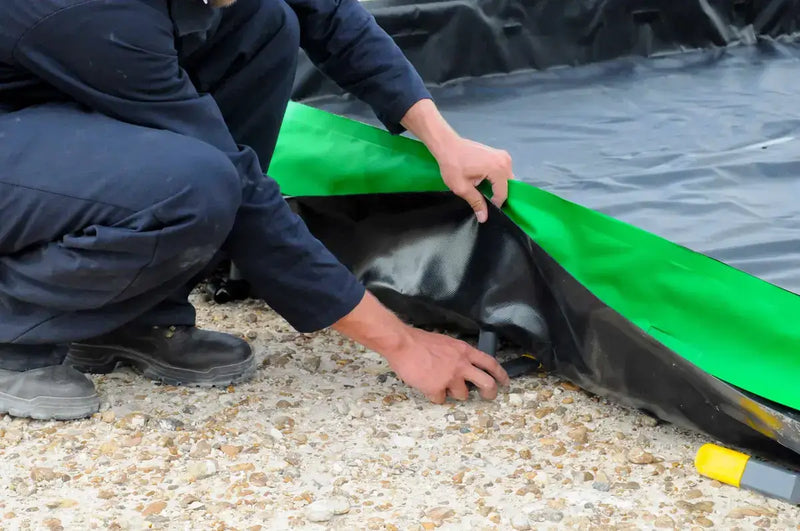

• Simply swivel the feet of the PVC supports to lower or raise the sidewalls in seconds.

• Optional self bailer to keep rainwater out of the berm.

• 5 year Manufacturer Warranty.

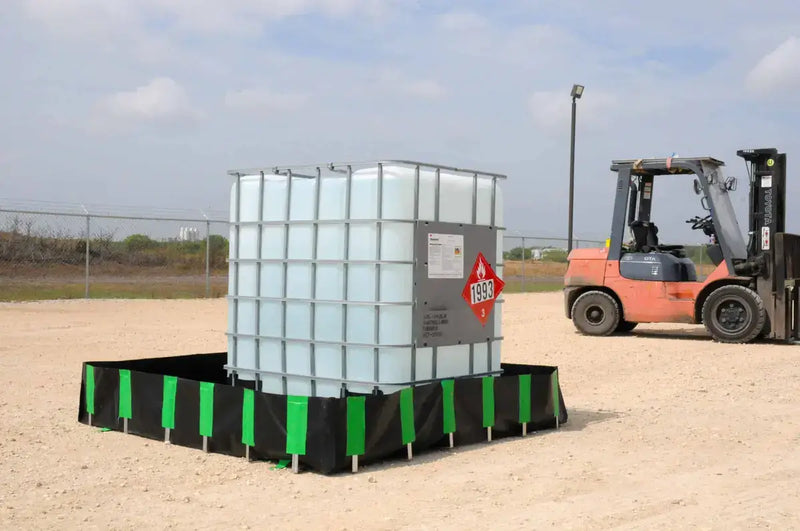

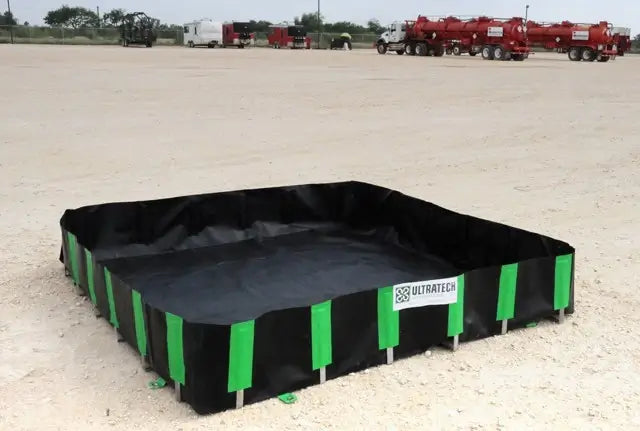

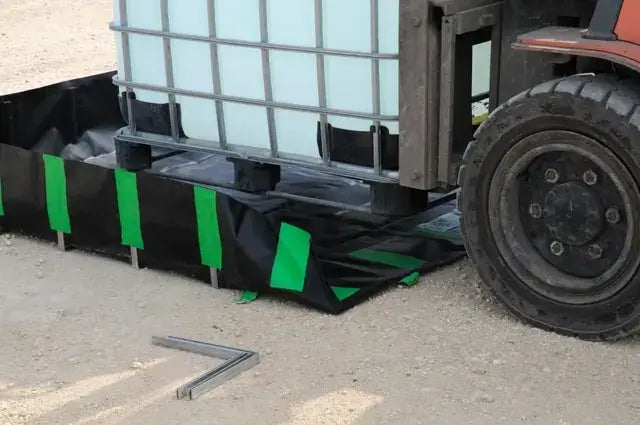

L Bracket Economy Model Features:

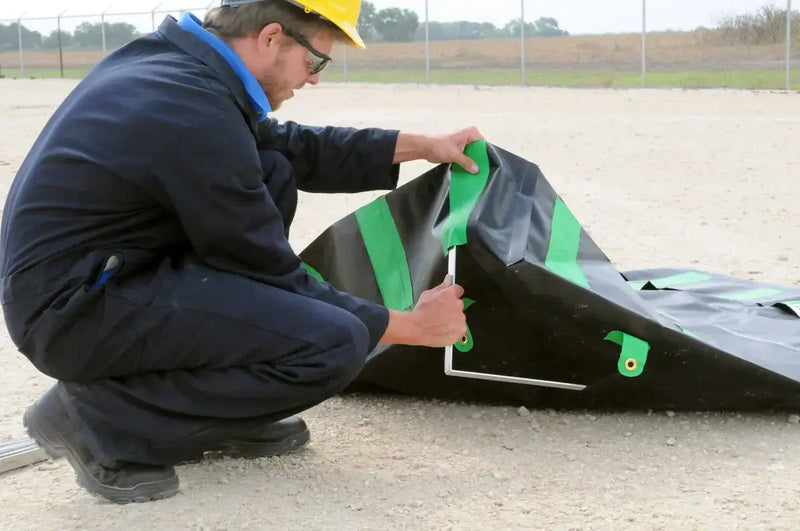

• L-Shaped aluminum brackets provide sturdy sidewall support.

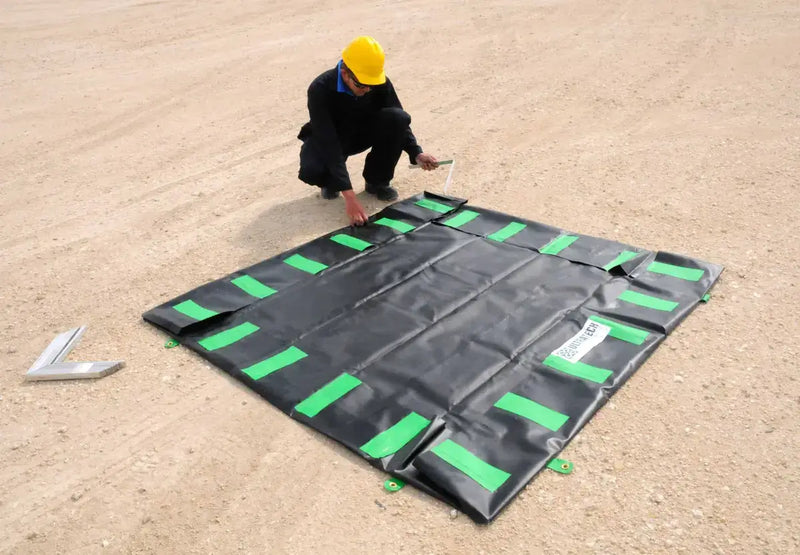

• Easy setup; brackets are quickly and easily inserted into sleeves spaced around the perimeter of the berm.
• No frames, components or extra material outside of the sidewall.

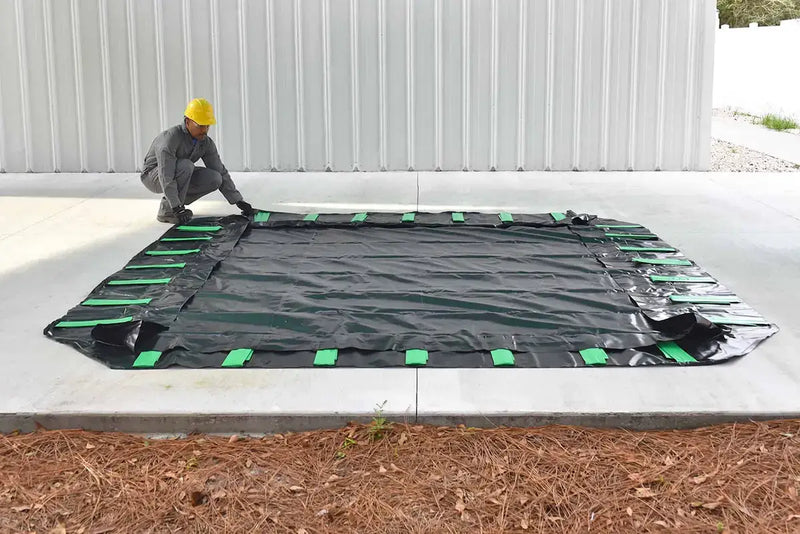

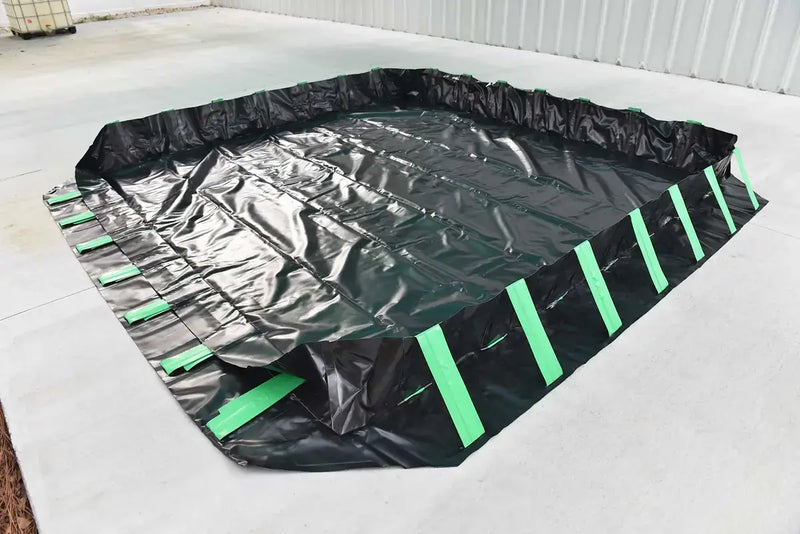

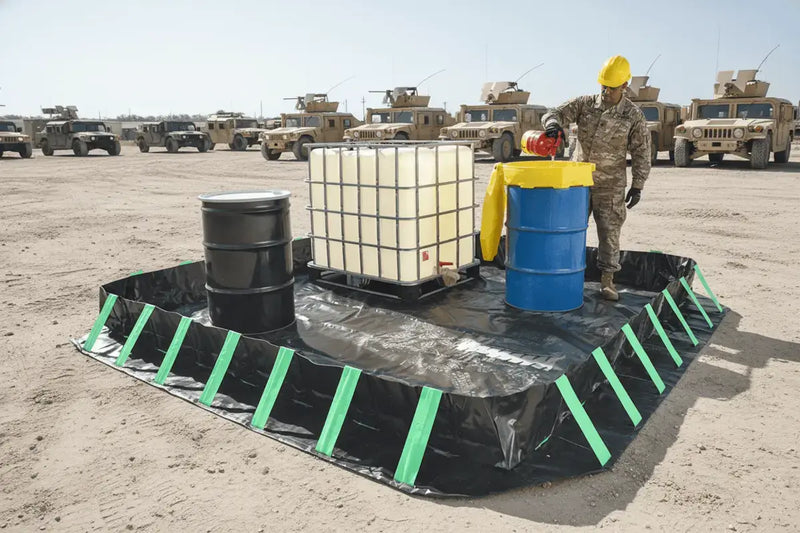

Compact Model Features:

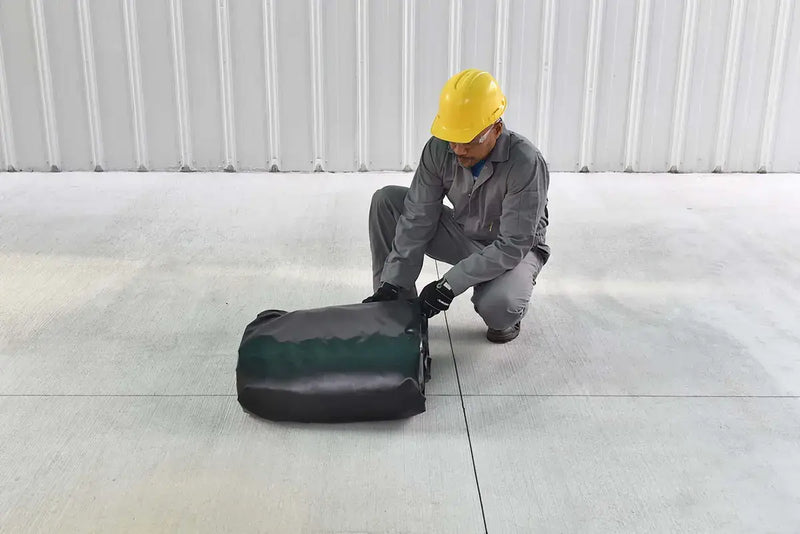

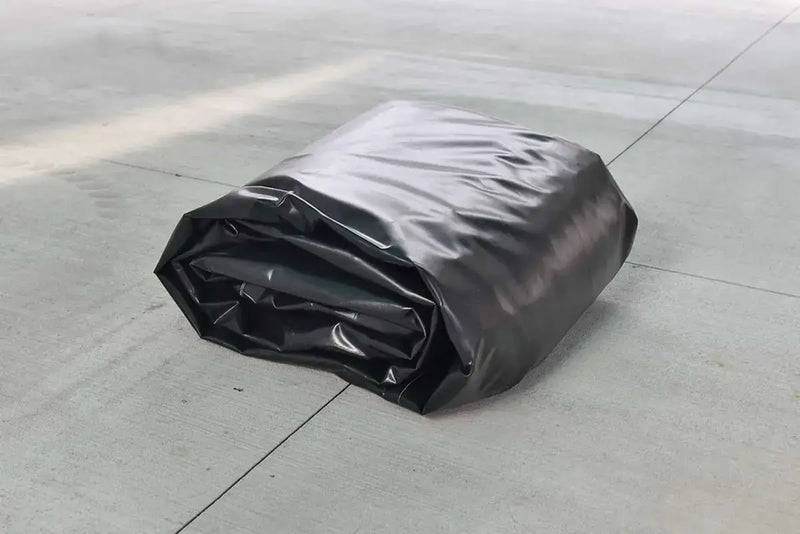

• Compact, lightweight and portable design - no inflation required.

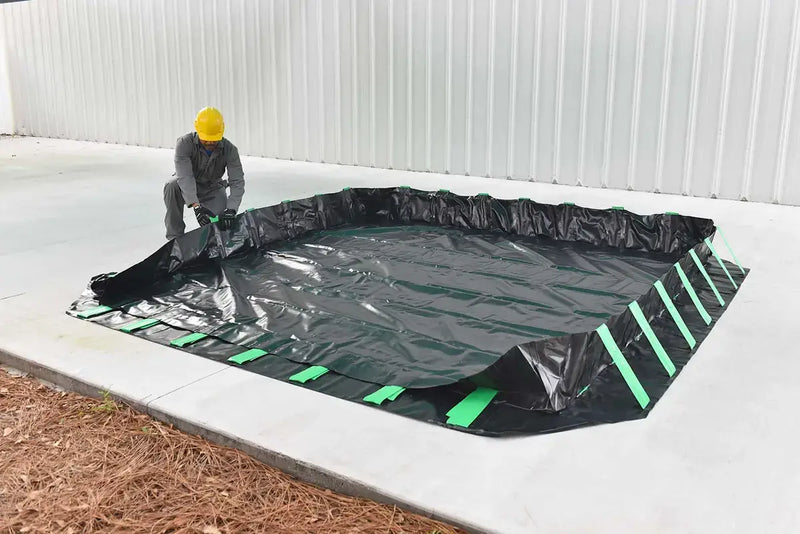

• Attached aluminum struts inserted into sleeves along the sidewall.

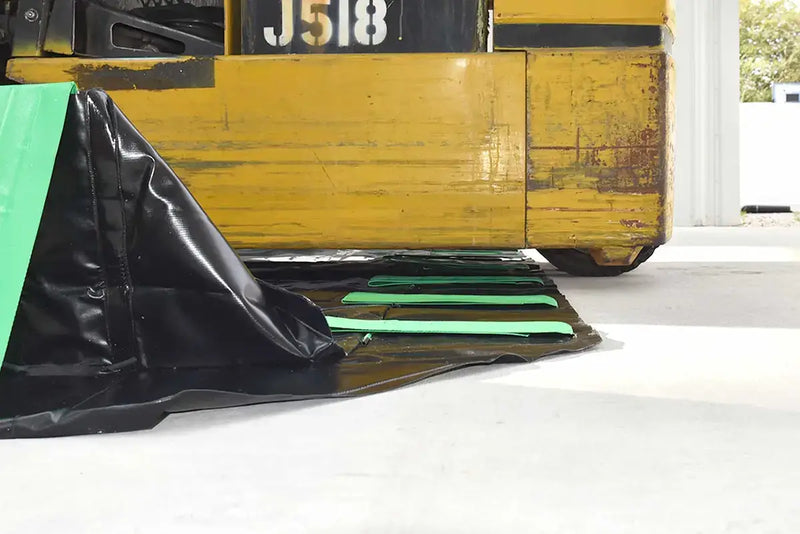

• Sidewalls can be manually lowered to ground level to allow drive in and drive out of vehicles.

Spec Sheets:

• Collapsible Wall Model
• L Bracket Economy Model
• Compact Model


Berm Chemical Compatibility / Maintenance:

• Spill Berm Chemical Guide

Available Sizes & Dimensions:

Collapsible Wall Model / 12 inch side wall height / copolymer liner:

• 4'x6' - 179 gallon containment capacity / 43 lbs
• 6'x6' - 269 gallon containment capacity / 46 lbs
• 10'x10' - 748 gallon containment capacity / 70 lbs
• 10'x20' - 1,496 gallon containment capacity / 96 lbs
• 10'x30' - 2,244 gallon containment capacity / 132 lbs
• 10'x40' - 2,992 gallon containment capacity / 170 lbs
• 10'x50' - 3,740 gallon containment capacity / 209 lbs
• 12'x12' - 1,077 gallon containment capacity / 69 lbs
• 12'x20' - 1,795 gallon containment capacity / 103 lbs
• 12'x30' - 2,692 gallon containment capacity / 142 lbs
• 12'x40' - 3,590 gallon containment capacity / 183 lbs
• 12'x50' - 4,488 gallon containment capacity / 224 lbs
• 12'x60' - 5,385 gallon containment capacity / 323 lbs
• 15'x15' - 1,683 gallon containment capacity / 95 lbs
• 15'x20' - 2,244 gallon containment capacity / 119 lbs
• 15'x30' - 3,366 gallon containment capacity / 164 lbs
• 15'x40' - 4,488 gallon containment capacity / 210 lbs
• 15'x50' - 5,610 gallon containment capacity / 319 lbs
• 15'x66' - 7,405 gallon containment capacity / 420 lbs

L Bracket Economy Model / 12 inch side wall height / copolymer liner:

• 4'x6' - 179 gallon containment capacity / 21 lbs
• 6'x6' - 269 gallon containment capacity / 26 lbs
• 10'x10' - 748 gallon containment capacity / 52 lbs
• 10'x20' - 1,496 gallon containment capacity / 88 lbs
• 10'x30' - 2,244 gallon containment capacity / 124 lbs
• 10'x40' - 2,992 gallon containment capacity / 160 lbs
• 10'x50' - 3,740 gallon containment capacity / 196 lbs
• 12'x12' - 1,077 gallon containment capacity / 69 lbs
• 12'x20' - 1,795 gallon containment capacity / 102 lbs
• 12'x30' - 2,692 gallon containment capacity / 144 lbs
• 12'x40' - 3,590 gallon containment capacity / 180 lbs
• 12'x50' - 4,488 gallon containment capacity / 227 lbs
• 12'x60' - 5,385 gallon containment capacity / 268 lbs
• 15'x15' - 1,683 gallon containment capacity / 95 lbs
• 15'x20' - 2,244 gallon containment capacity / 118 lbs
• 15'x30' - 3,366 gallon containment capacity / 165 lbs
• 15'x40' - 4,488 gallon containment capacity / 212 lbs
• 15'x50' - 5,610 gallon containment capacity / 259 lbs
• 15'x66' - 7,405 gallon containment capacity / 334 lbs

Compact Model / 12 inch side wall height / copolymer liner:

• 4'x6' - 179 gallon containment capacity / 34 lbs
• 6'x6' - 269 gallon containment capacity / 39 lbs
• 10'x10' - 748 gallon containment capacity / 72 lbs
• 10'x20' - 1,496 gallon containment capacity / 146 lbs
• 10'x30' - 2,244 gallon containment capacity / 201 lbs
• 10'x40' - 2,992 gallon containment capacity / 257 lbs
• 10'x50' - 3,740 gallon containment capacity / 312 lbs
• 12'x12' - 1,077 gallon containment capacity / 111 lbs
• 12'x20' - 1,795 gallon containment capacity / 158 lbs
• 12'x30' - 2,692 gallon containment capacity / 216 lbs
• 12'x40' - 3,590 gallon containment capacity / 274 lbs
• 12'x50' - 4,488 gallon containment capacity / 333 lbs
• 12'x60' - 5,385 gallon containment capacity / 335 lbs
• 15'x15' - 1,683 gallon containment capacity / 147 lbs
• 15'x20' - 2,244 gallon containment capacity / 179 lbs
• 15'x30' - 3,366 gallon containment capacity / 243 lbs
• 15'x40' - 4,488 gallon containment capacity / 306 lbs
• 15'x50' - 5,610 gallon containment capacity / 317 lbs
• 15'x66' - 7,405 gallon containment capacity / 404 lbs

Other Options:

• Browse other spill containment berm options or all Ultra Containment Berm options.
